TRACTOR HYDRAULIC POWER-PACK UNIT WITH A CAPACITY OF 100L FLOW 53L/MIN 3XZ80 - WITH OIL COOLER
| Technical information | |
| Supplier: | Slovenia |
| Return or exchange: | Not possible |
| Warranty: | 6 months |
| Product weight: | 117 kg (174 kg with oil) |
| Hydraulic pump: | GR.2 - 25 cc |
| Gearbox (multiplier): | GR.2 (ratio 1:3,8) |
| Hydraulic valve: | 3×Z80 |
| Flow rate: | 53 L/min (at 540 rpm PTO speed) |
| Oil cooler: | Yes (20-100 L) |
| Max. pressure: | 250 bar |
| Nominal pressure: | 200 bar |
| Reservoir capacity: | 100 L |
| Recommended hydraulic oil: | ISO VG 46 |
Description:
The RS-25 tractor hydraulic power pack unit is a self-contained hydraulic unit designed to operate attachments on tractors that lack sufficient hydraulic flow or power. The unit operates independently of the tractor’s existing hydraulic system, thereby relieving the tractor and preserving its performance.
The RS-25 ensures stable, reliable hydraulic flow, enabling efficient, versatile operation of various attachments. It features a robust design, reliable operation, and a long service life, even under demanding working conditions.
It is suitable for a wide range of applications in agriculture, forestry, and viticulture, such as:
- topping machines,
- log splitters,
- snow blowers,
- loaders,
- mowers,
- sweeping machines,
- spreaders and other hydraulic implements.
The RS-25 is the ideal solution wherever additional hydraulic power is required, without modifications to the tractor’s hydraulic system.

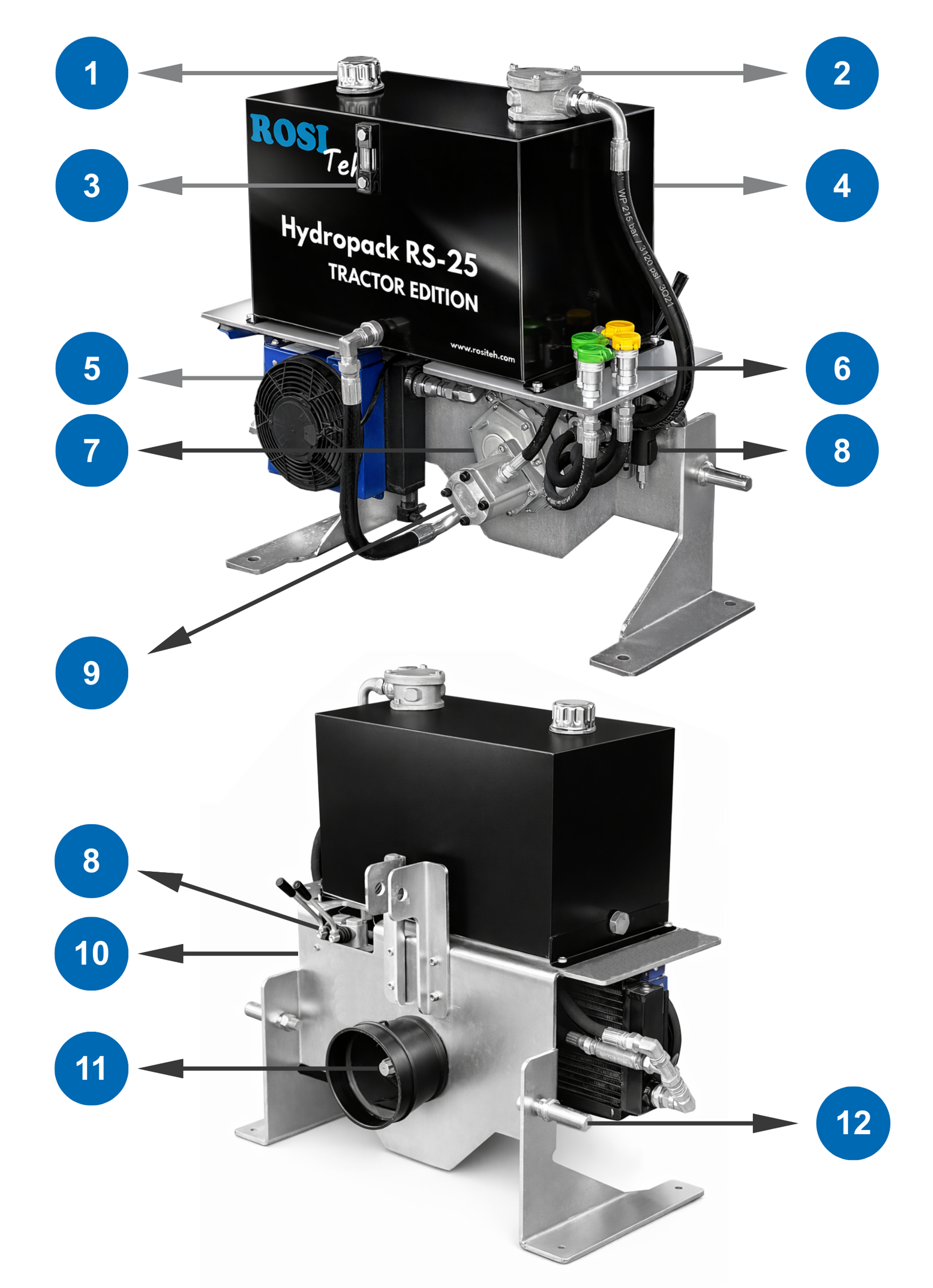

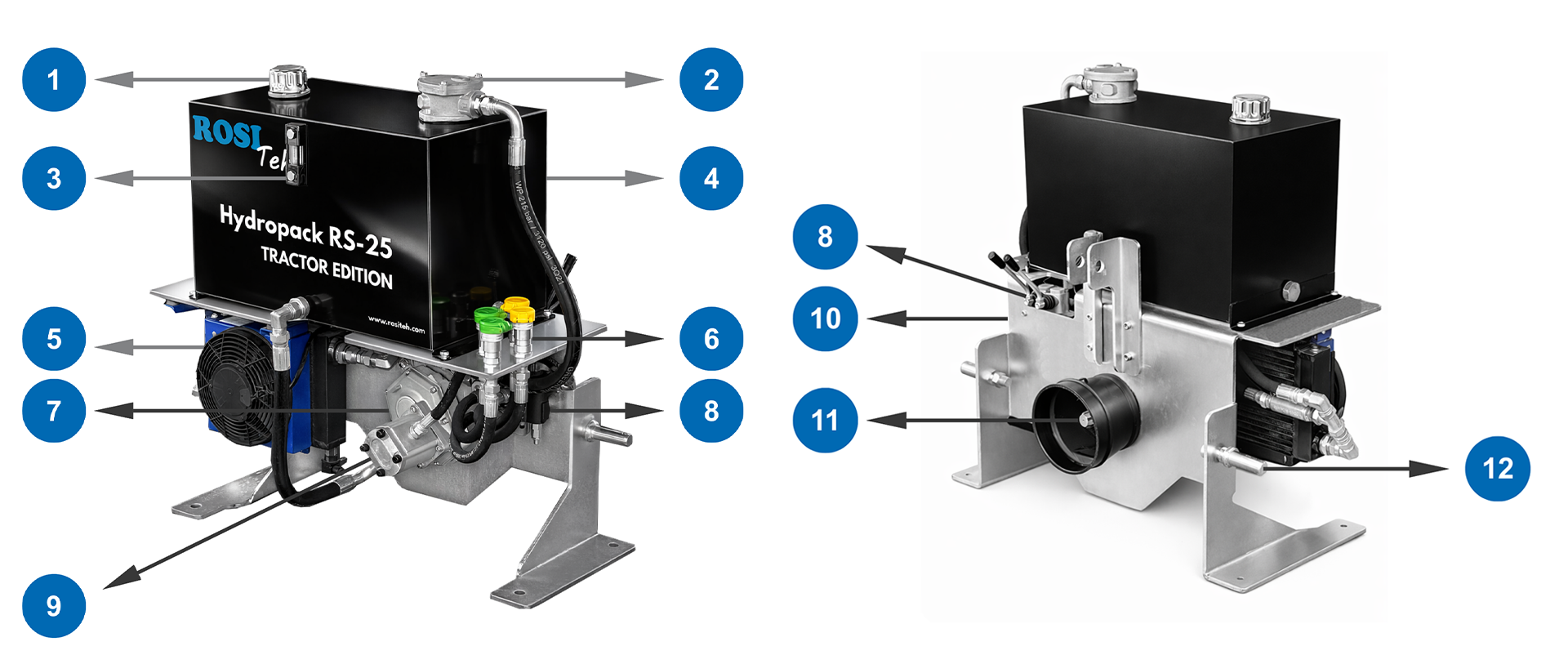

CONFIGURATION OF THE RS-25 HYDRAULIC POWER PACK UNIT WITH OIL COOLE
| COMPONENTS OF THE TRACTOR HYDRAULIC POWER UNIT WITH OIL COOLER | |
| 1 | Filler filter |
| 2 | Suction filter |
| 3 | Level gauge |
| 4 | Hydraulic oil reservoir |
| 5 | Hydraulic oil cooler |
| 6 | Hydraulic outlets (quick couplings) |
| 7 | Gearbox (multiplier) |
| 8 | Hydraulic valve |
| 9 | Hydraulic pump |
| 10 | Base mounting plate |
| 11 | PTO shaft section |
| 12 | Mounting wedge |
CUSTOM CONFIGURATION – available options
| HYDRAULIC VALVE | CODE |
| 1x Z80 | 10115 |
| 2x Z80 | 10116 |
| 3x Z80 | 10796 |
| 4x Z80 | 10117 |
| HYDRAULIC OIL RESERVOIR | CODE |
| 70 L | 12933 |
| 100 L | 12934 |
| HYDRAULIC OIL COOLER | CODE |
| 20–100 L (12 V) | 10428 |
| AVAILABLE HYDRAULIC PUMP OPTIONS AND SPECIFICATIONS | |||||
| Pump | Pump displacement | Max. PTO speed | Flow rate | Max. pressure | Rated pressure of the hydraulic power pack unit |
| GR.2 | [cc] | [rpm] | [L/min] | [bar] | [bar] |
| 16 | 540 | 33 | 300 | 250 | |
| 20 | 41 | ||||
| 25 | 52 | 250 | 200 | ||
| 28 | 57 | 200 | 160 | ||
| 30 | 62 | ||||
Note: The hydraulic power unit oil reservoir is supplied empty as standard. Hydraulic oil is available as an optional extra. We recommend the use of ISO VG 46 hydraulic oil.
