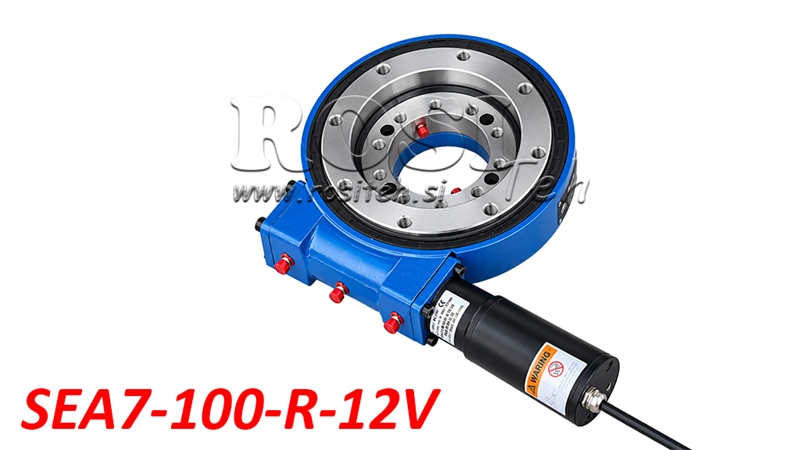

WORM GEAR SLEW DRIVE SERIES SEA7-100-R WITH ELECTRIC MOTOR 12V - GEAR RATIO 71:1 - ECO
| Technical information | |
| Supplier: | China |
| Return or exchange: | 14 days |
| Warranty: | 6 months |
| Product weight: | 19,5 kg |
| Gear ratio: | 71:1 |
| Output torque: | 0,21 kNm (210 Nm) |
| Voltage: | 12 V |
| Electric current: | ≤ 14 A |
| Maximum output speed: | 1,4 rpm |
| Static axial load capacity: | 133 kN |
| Static radial load capacity: | 53 kN |
| Tilting moment: | 13,5 kNm |
| Backlash: | ≤ 0,2° |
| Rotation range: | 360° (continuous) |
| Outer diameter of slewing drive: | 262 mm |
| Model: | SEA07-12V100R |
| Holding torque: | 10,4 kNm |
Description
SEA7 series worm gear slew drives with a 12 V electric motor offer a compact, robust, and cost-effective solution for electrically driven rotation and precise positioning of various structures and equipment. They combine a worm gear reducer, slewing bearing, and electric motor into a single functional unit capable of transmitting high torque and withstanding axial, radial, and tilting loads.
The SEA7 series is suitable for applications requiring slow, smooth, and controlled rotation. Thanks to the integrated 12 V electric motor, the drive is particularly useful for equipment and vehicles with a 12-volt electrical system, as it does not require an additional hydraulic system for operation.
How the Worm Gear Slew Drive Works
The worm gear slew drive operates on the principle of a worm gear transmission, in which the electric motor drives a toothed slewing ring through a worm shaft. This design provides a high reduction ratio, high torque, and slow, smooth, and controlled rotation.
The integrated 12 V electric motor enables electric operation without the need for a hydraulic pump, hydraulic motor, or hydraulic hoses. This simplifies installation and allows the drive to be used in equipment where a hydraulic system is not available.
The drive enables continuous 360° rotation, while the integrated slewing bearing supports axial and radial forces as well as tilting moments. The worm gear transmission also provides high holding torque, contributing to the positional stability of the rotating structure.
Key Advantages
-
Electric drive with an included 12 V electric motor.
-
Operation without the need for an additional hydraulic system.
-
Compact and robust construction with an integrated slewing bearing.
-
Continuous 360° rotation capability.
-
High reduction ratio for slow and precise rotation.
-
High output and holding torque.
-
High load capacity under axial and radial loads.
-
Ability to withstand high tilting moments.
-
Simplified installation in equipment with a 12-volt electrical system.
-
Wide range of applications in agricultural, forestry, construction, and industrial machinery.
Applications
SEA7 series worm gear slew drives with electric motors are suitable for various applications requiring electrically controlled rotation, positioning, or movement of structural assemblies.
-
Agricultural machinery – rotating attachments, adjustable structures, and agricultural equipment.
-
Forestry machinery – rotating mechanisms, smaller material handling equipment, and auxiliary working assemblies.
-
Construction machinery – rotating platforms, positioning systems, and specialized structures.
-
Industrial equipment – rotary tables, positioning devices, and material handling systems.
-
Transport and special-purpose vehicles – electrically operated rotating mechanisms and vehicle-mounted equipment.
-
Solar tracking systems – rotating supports and systems for adjusting the position of solar panels.
Construction and Performance
The SEA7 worm gear slew drive features a robust design that combines a gear transmission and slewing bearing in a compact housing. Its construction allows it to withstand various types of loads, making it suitable for integration into numerous mechanical systems.
The drive features a gear reduction ratio of 71:1, a maximum output rotation speed of 1.4 rpm, and a rated output torque of 210 Nm. The static axial load capacity is 133 kN, the static radial load capacity is 53 kN, and the maximum tilting moment is 13.5 kNm.
The holding torque is 10.4 kNm, providing effective resistance to external rotational loads. During operation, the permissible loads, installation method, and appropriate electrical control system must be taken into account.
Electrical Connection and Control
The worm gear slew drive is equipped with a 12 V DC electric motor with a specified maximum current of 14 A. It is suitable for connection to an appropriate 12-volt power supply.
Proper electrical controls, power supply protection, and correctly sized electrical cables must be provided for operation. The control method depends on the requirements of the specific application.
The electric motor is included with the worm gear slew drive.

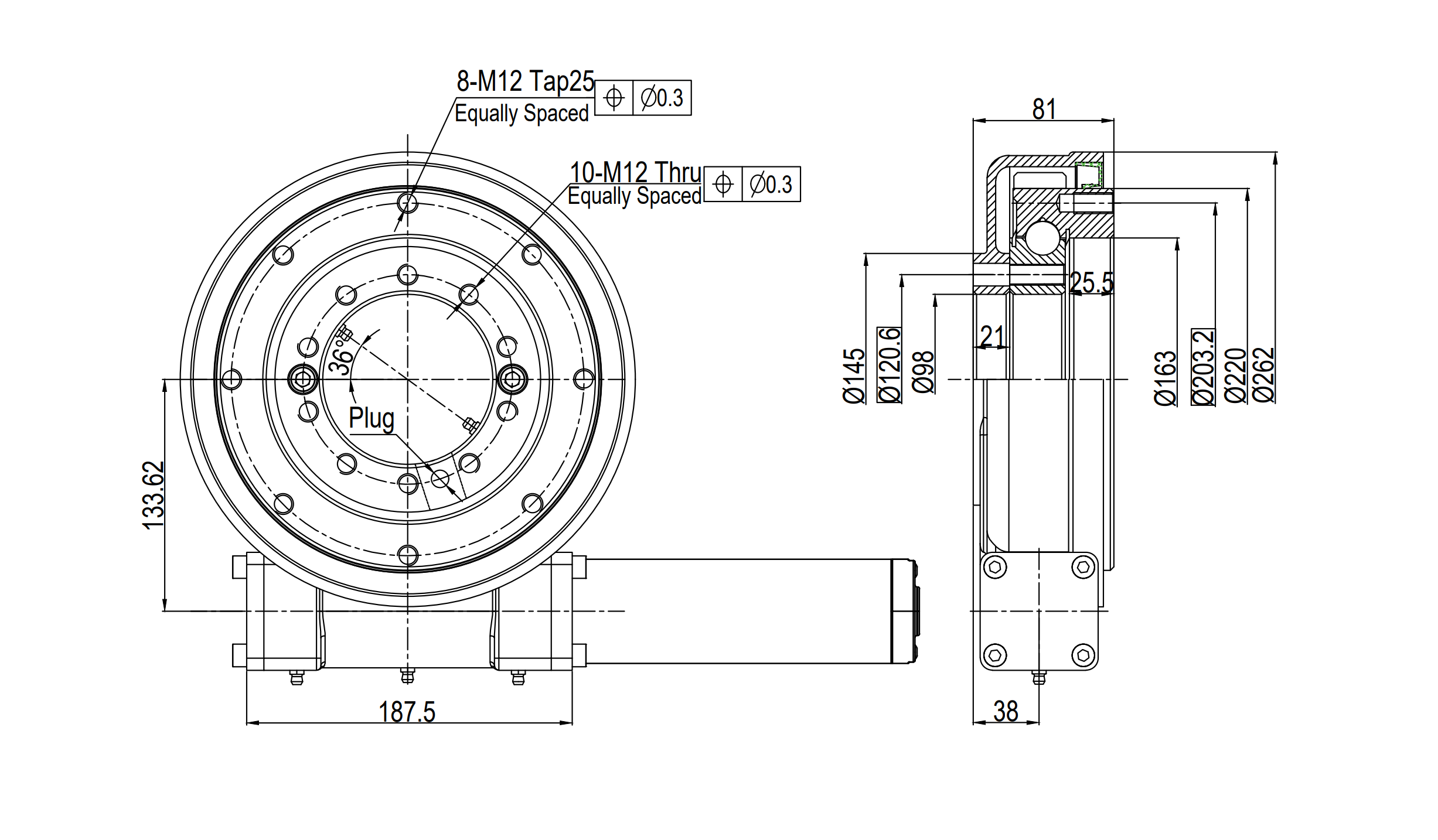

Dimensions SAE07 - ECO

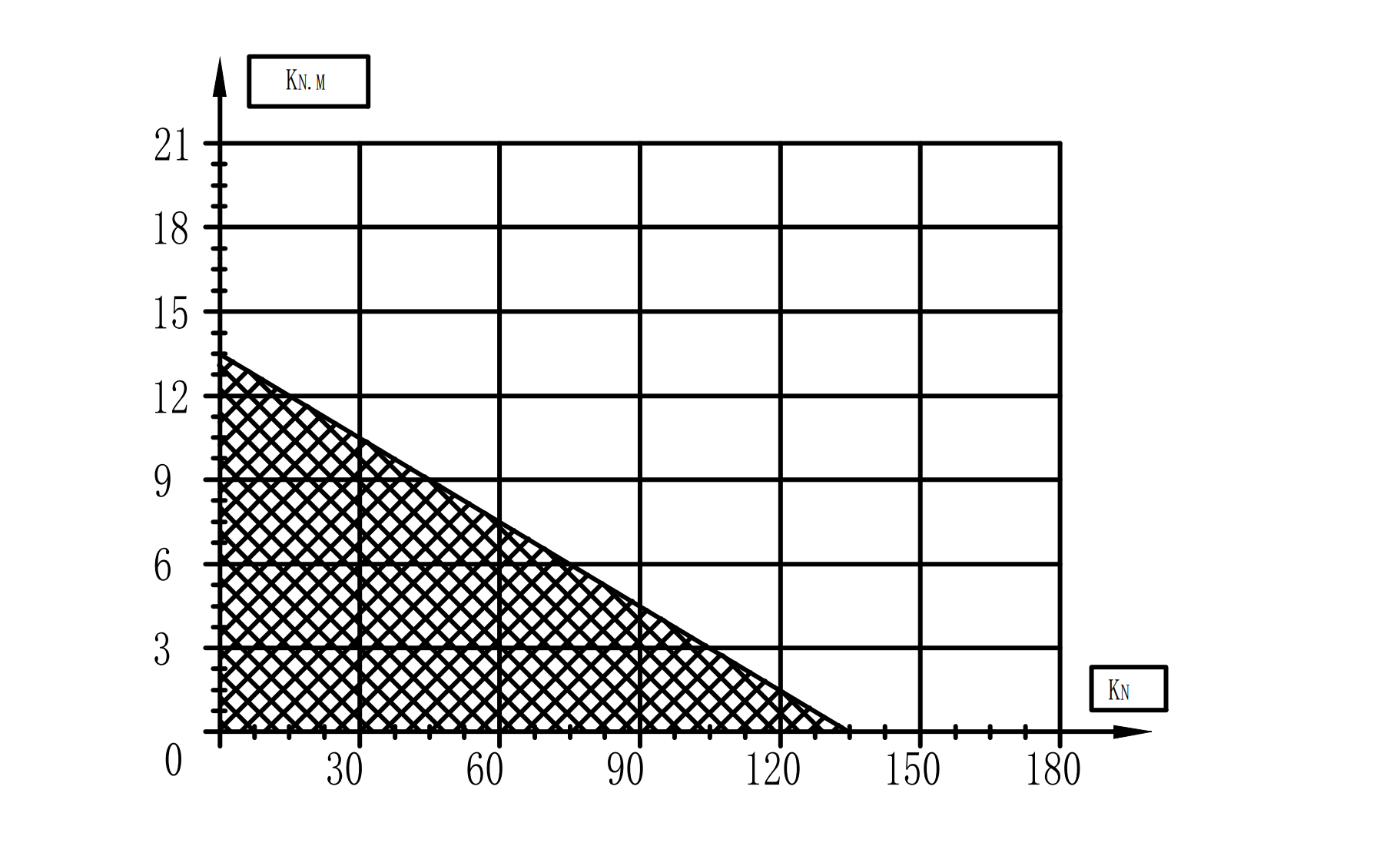

Load Capacity Diagram
The diagram shows the permissible combinations of axial load and tilting moment for the SEA7 worm gear slew drive. As the axial load increases, the permissible tilting moment decreases. To ensure proper selection and safe operation of the drive, the limit values specified by the manufacturer must be observed.
Horizontal axis: axial load in kN.
Vertical axis: tilting moment in kNm.
Highlighted area: permissible load combinations according to the manufacturer's diagram.
Limit curve: combined load limit that must not be exceeded.
