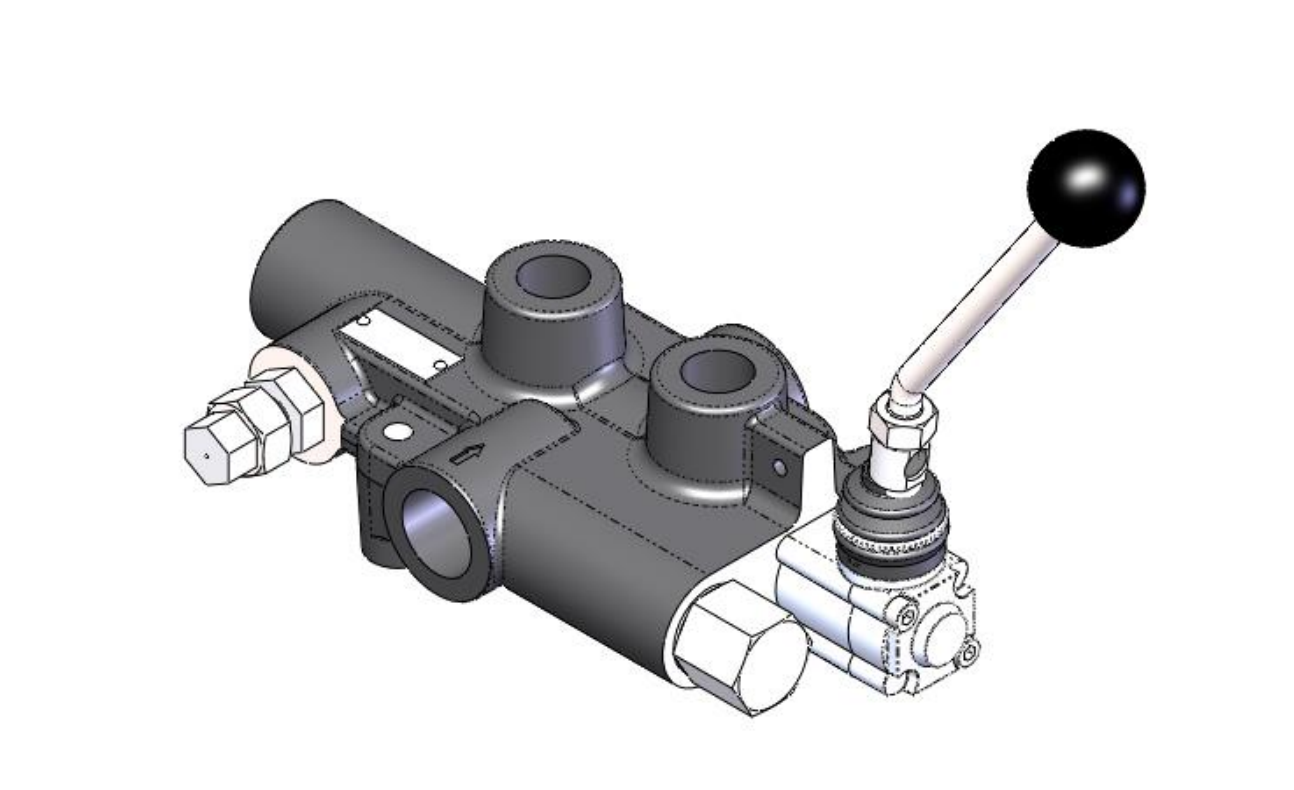

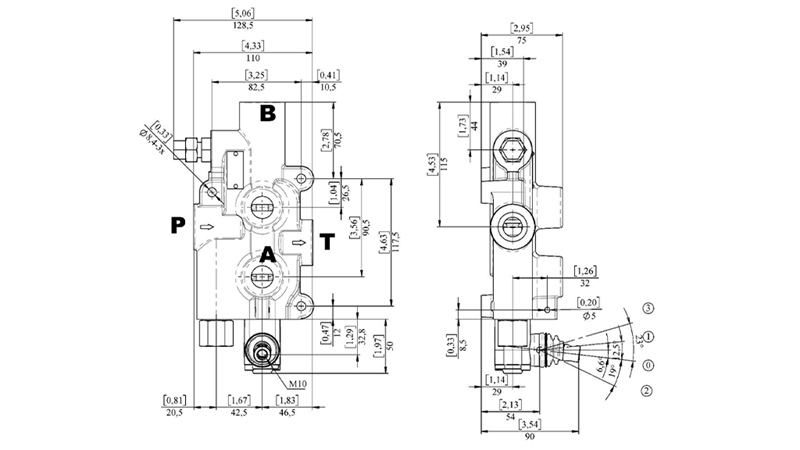

HYDRAULIC VALVE P81-RS AUTOMATIC FOR SPLITTER - TWO-SPEED
Article code:
10707
OEM:
9990000006281
Tax rate
22 %
Price without VAT:
81,97 EUR
Price with VAT:
100,00 EUR
Ref:
39
| Technical information | |
| Supplier: | Bulgaria |
| Return or exchange: | 14 days |
| Warranty: | 6 months |
| Nominal oil flow rate: | 80 l/min |
| Spindle stroke: | ± 7,9 mm |
| Operating temperature range: | from −40 °C to +60 °C |
| Connection thread: | P and T port – 3/4", A and B port – 1/2" |
| Max. pressure: | P port – 250 bar, T port - 50 bar, A and B port – 300 bar |
| Safety relief valve: | factory set at 150 bar |
Description

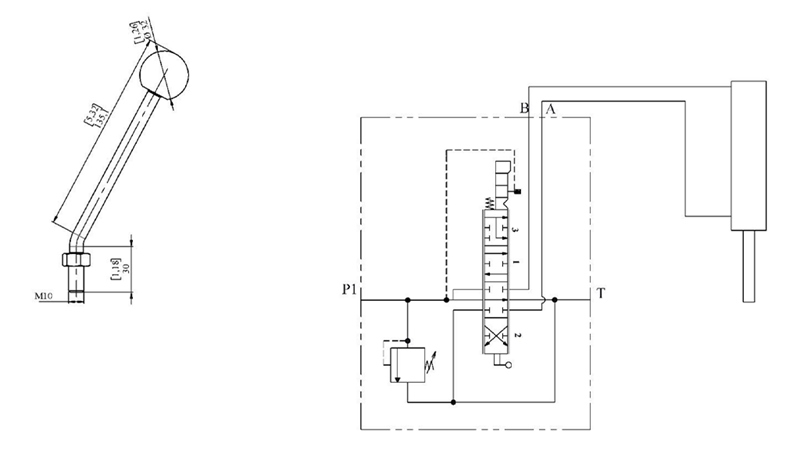

The P81-RS is a compact and robust two-speed hydraulic valve designed for wood splitters. It allows a flow rate of up to 80 l/min and is equipped with a safety pressure relief valve.
The valve features an automatic pressure unloading function. Once the set pressure is reached (factory setting is 150 bar), it automatically returns the lever to the neutral position.
