HYDRAULIC VALVE HIAB 8XPC70 + 2X JOYSTICK - ELECTRIC CONTROL 12V
Article code:
12510
OEM:
9990000073139
Tax rate
22 %
Price without VAT:
967,21 EUR
Price with VAT:
1.180,00 EUR
Ref:
5
| Technical information | |
| Supplier: | Bulgaria |
| Return or exchange: | 14 days |
| Warranty: | 6 months |
| Nominal oil flow rate: | 70 l/min |
| Max. oil flow: | 80 l/min |
| Operating temperature range: | from -20 °C to +60 °C |
| Connection thread: | A, B and P port 1/2", T port - 3/4" |
| Max. pressure: | P port – 250 bar, T port - 50 bar, A and B port – 300 bar |
| Coils: |
12/24 V - 60 W (on/off) |
| Weight: |
32,3 kg |
Description

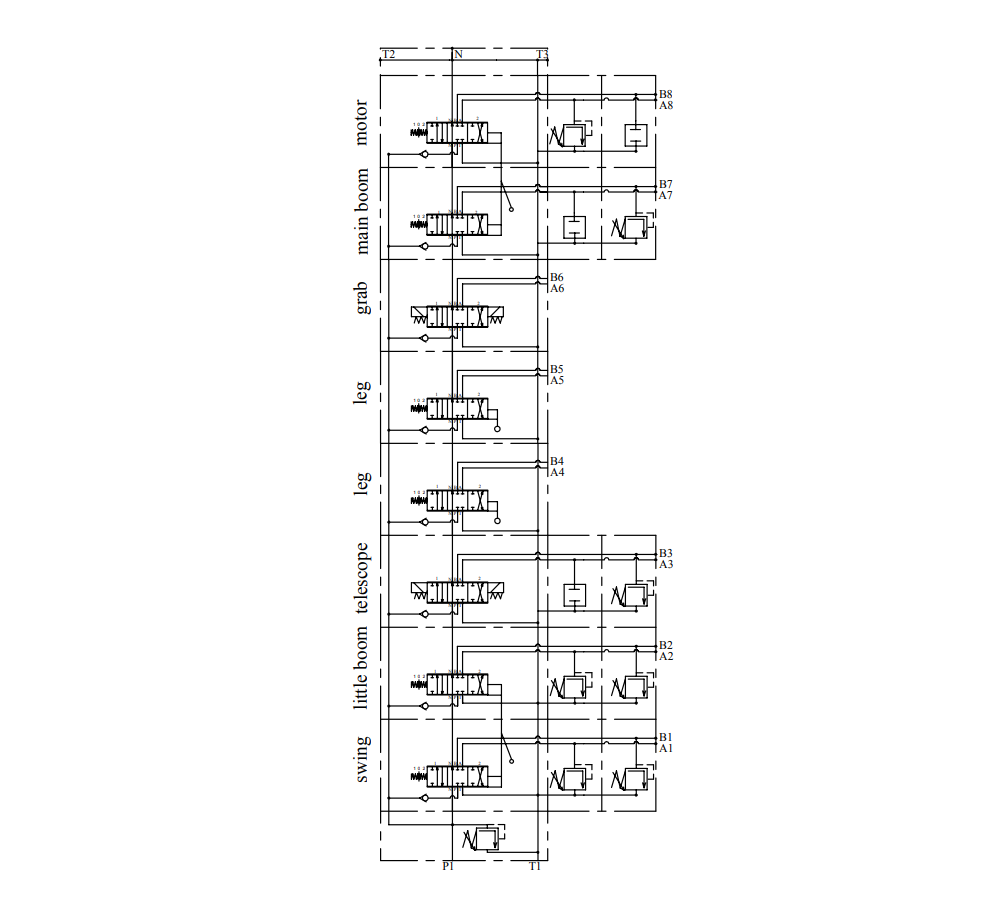

The PC70 is a stackable (sectional) valve designed for use on forestry trailers with a crane (HIAB). It allows both mechanical and electronic control. The hydraulic valve consists of eight sections.
