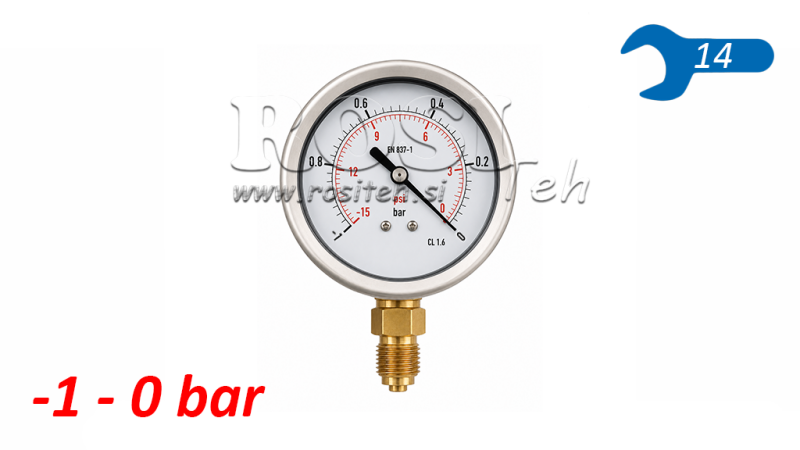

VACUUM METER DN63 VERTICAL -1 - 0 BAR - 1/4"
| Technical data | |
| Accuracy: | 1.6% |
| Supplier: | Spain |
| Temperature range: | from -20 to +60 |
| Return or exchange: | 14 days |
| Manometer scale: | -1 - 0 bar |
| Units on scale: | per 0.02 bar |
| Connection thread: | 1/4" |
| Material: | Case: stainless steel 304, Ring: stainless steel 304, Window: polycarbonate (glass), Connection: brass |
Description
The DN63 Vertical vacuum gauge is designed for measuring vacuum (negative pressure) in vacuum systems, pneumatic equipment, and other applications where vacuum monitoring is required. The clear measuring scale allows quick and easy reading of measured values during system operation.
The bottom connection (vertical design) allows direct installation onto pipelines, valves, or other measuring points. The vacuum gauge is used in industry, laboratory equipment, vacuum pumps, filtration systems, and other devices where vacuum control is important.
Note: Some pressure gauges are supplied with a sealed vent plug due to transport. For proper operation, it may be necessary to puncture or cut the top plug before use in accordance with the manufacturer’s instructions. This allows pressure equalization inside the housing and ensures accurate measurement.
