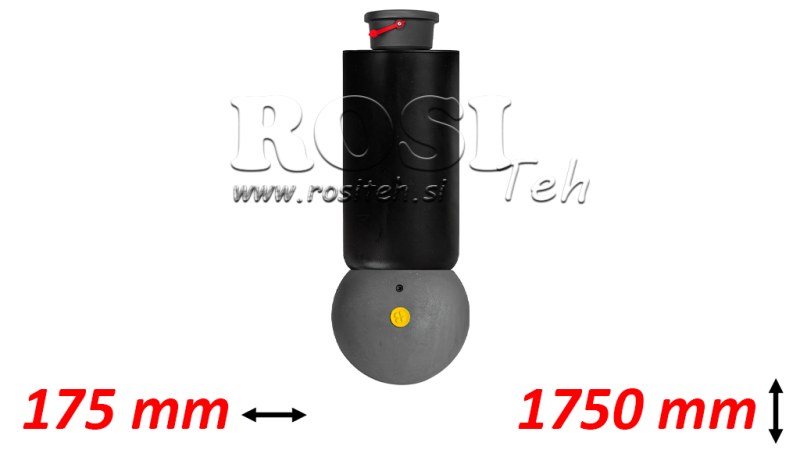

TELESCOPIC CYLINDER - MEILLER KIPPER 5 EXTENSIONS 175MM - 15 TON STROKE 1750MM
| Technical data | |
| Supplier: | Turkey |
| Return or exchange: | 14 days |
| Warranty: | 2 years |
| Number of stages: | 5 |
| Material: | hardened steel and S355J0 |
| Temperature range: | from -40 to 80°C |
| Max. working pressure: | 190 bar |
| Connection thread: | M22X1,5 |
| Load capacity (at 180 bar): | 27,2 ton |

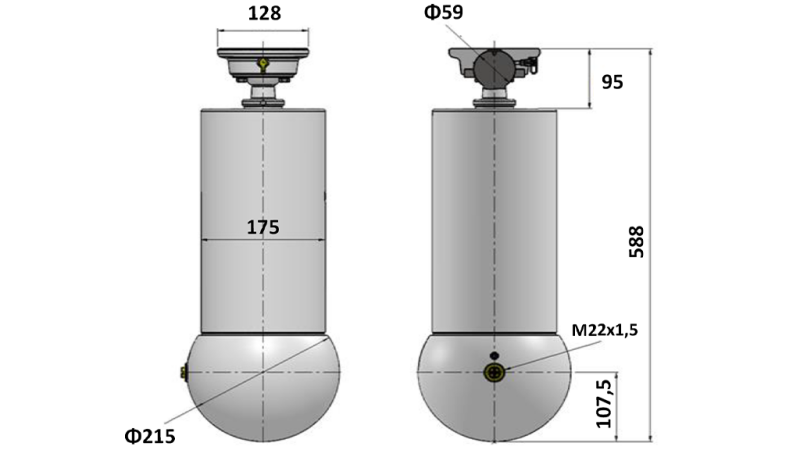

| Length (min. → max.): | 588 → 2338 mm |
| Outer cylinder diameter: | 175 mm |
| Cylinder stroke: | 1750 mm |
| Oil volume: | 16 lit |
| Supplier code: | UCSB-135-5-1750-000-C588 |
| Product weight: | 90 kg |
Description
The Meiller Kipper hydraulic cylinder is a high-quality telescopic cylinder. It is distinguished by exceptional load capacity, efficient use of hydraulic pressure, long span life, and reliable performance in all weather conditions. Thanks to its superior construction, it is an ideal choice for trucks and trailers where maximum stability and safety are required when lifting the caisson.
| Caisson tilt angle (α°) | |||||
| α° | 40° | 45° | 50° | 55° | 60° |
| A (mm) | 1750 | ||||
| B (mm) | 2625 | 2333 | 2100 | 1909 | 1750 |
IMPORTANT:
This cylinder is intended exclusively as a lifting component. It could not be used in a horizontal position or as a load-bearing structural element. Do not operate it above the permitted working pressure or load capacity. Adjust the safety valve only to the allowed working pressure. Pay attention to the characteristics of the hydraulic oil used in the cylinder, and ensure that an appropriate hydraulic filter is installed in the system. Also, do not apply uneven or unbalanced loads to the caisson of the trailer or truck.
