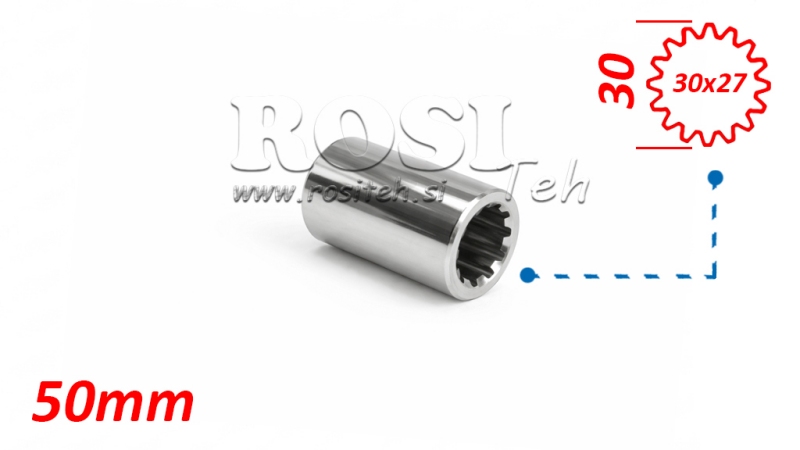

PTO ADAPTER BUSH 30x27 (16 SPLINES) (50 mm)
Article code:
100049
OEM:
9990000017188
Tax rate
22 %
Price without VAT:
15,57 EUR
Price with VAT:
19,00 EUR
Ref:
2
| ITEM | INTERNAL PROFILE | OUTER Ø (mm) | TOTAL LENGTH (mm) | SPLINE LENGTH (mm) | APPLICATION / NOTES |
| 14805 | 1" 1/8 | 38 | 100 | 70 | Ferguson T20 |
| 100198 | 1" 3/8 | 48 | 60 | 60 | |
| 100199 | 100 | 100 | |||
| 100158 | 150 | 150 | |||
| 100201 | 200 | ||||
| 12178 | 1" 3/4 | 60 | 80 | 80 | |
| 12179 | 120 | 100 | |||
| 14806 | 11 UNI 221 | 25 | 40 | 30 | 11x14x3 - 6 spline |
| 14807 | 13 UNI 221 | 28 | 40 | 13x16x3.5 - 6 spline | |
| 14808 | 15x12 - 8 spline DIN 5482 | 30 | 15x12 - 8 spline DIN 5482 | ||
| 14809 | 16 UNI 221 | 50 | 50 | 16x20x4 - 6 spline | |
| 14810 | 17x14 - 9 spline DIN 5482 | 28 | 40 | 40 | 17x14 - 9 spline DIN 5482 |
| 100239 | 18x15 - 10 spline DIN 5482 | 30 | 18x15 - 10 spline DIN 5482 | ||
| 14811 | 18 UNI 221 | 32 | 50 | 50 | 18x22x5 - 6 spline |
| 14812 | 19x22x3.5 - 10 spline | 40 | 40 | Pasquali type 1 | |
| 100157 | 20x17 - 12 spline DIN 5482 | 30 | 55 | 55 | 20x17 - 12 spline DIN 5482 |
| 14813 | 21 UNI 221 | 38 | 60 | 60 | 21x25x5 - 6 spline |
| 14814 | 22x19 - 13 spline DIN 5482 | 32 | 45 | 45 | 22x19 - 13 spline DIN 5482 |
| 14815 | 23 UNI 221 | 38 | 60 | 60 | 23x28x6 - 6 spline |
| 11120 | 25x22 - 14 spline DIN 5482 | 35 | 45 | 45 | 25x22 - 14 spline DIN 5482 |
| 14816 | 26 UNI 220 | 42 | 60 | 60 | 26x30x6 - 6 spline |
| 14817 | 26 UNI 221 | 26x32x6 - 6 spline | |||
| 14818 | 28x25 - 15 spline DIN 5482 | 40 | 28x25 - 15 spline DIN 5482 | ||
| 14819 | 28 UNI 220 | 45 | 28x32x7 - 6 spline | ||
| 14820 | 28 UNI 221 | 28x34x7 - 6 spline | |||
| 100049 | 30x27 - 16 spline DIN 5482 | 42 | 50 | 50 | 30x27 - 16 spline |
| 14821 | 30x27 - 18 spline | Sep - Valpadana | |||
| 11121 | 35x31 - 18 spline DIN 5482 | 48 | 35x31 - 18 spline |
DESCRIPTION
PTO spline sleeves (female adapters) are designed for secure connection and alignment of PTO shafts and implements with the same spline profiles (number of splines). They are used to extend or join shafts, ensuring reliable and efficient power transmission without slippage. Precision manufacturing provides optimal fit, making them an ideal solution for agricultural machinery where durability and compatibility are essential.
