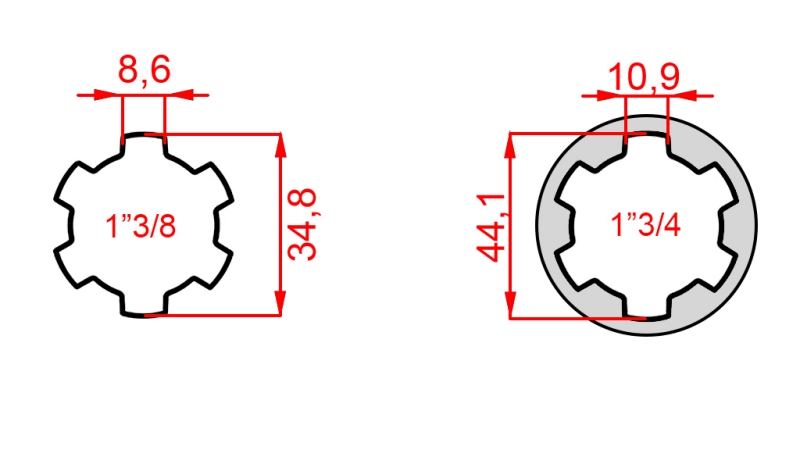

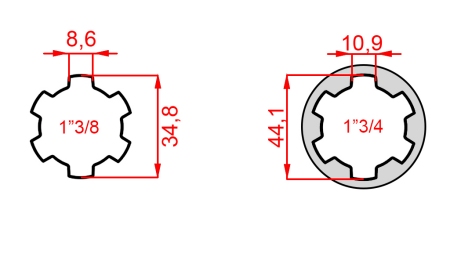

PTO ADAPTER WITH PIN FROM 1-3/4 TO 1-3/8 (165 mm)
Article code:
100098
OEM:
9990000019519
Tax rate
22 %
Price without VAT:
60,66 EUR
Price with VAT:
74,00 EUR
Ref:
1
DESCRIPTION
PTO adapters with locking pin are used to adapt between different PTO spline profiles where dimensions or the number of splines differ. They are designed to connect PTO shafts and implements with different standards, ensuring reliable and efficient torque transmission. The integrated spring-loaded locking pin (push button) enables quick, tool-free installation and removal while preventing accidental disconnection during operation. Precision manufacturing ensures optimal fit, while the robust construction provides long service life even under heavy loads.
| ITEM | EXTERNAL PROFILE | INTERNAL PROFILE | TOTAL LENGTH (mm) | APPLICATION / NOTES |
| 100097 | 1" 1/8 | 1" 3/8 | 150 | Extension from reduced to standard - Hardened R 80/85 kg/mm² |
| 100118 | 1" 3/8 | Standard 1" 3/8 extension - Hardened R 80/85 kg/mm² | ||
| 100098 | 1" 3/4 | 165 | Extension from standard to increased - Hardened R 80/85 kg/mm² | |
| 100119 | 1" 3/4 | Extension 1" 3/4 - Increased | ||
| 100114 | 1" 3/8 | Extension from increased to standard |
