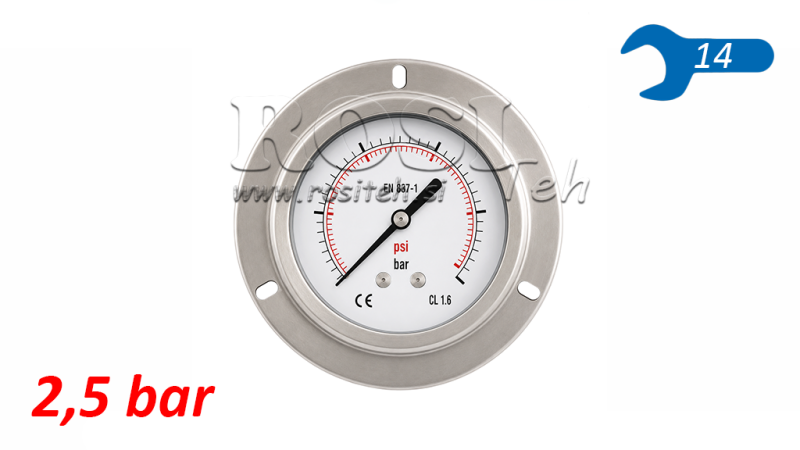

MANOMETER DN63 REAR 0 - 2.5 BAR - 1/4"
| Technical data | |
| Accuracy: | 1.6% |
| Supplier: | Spain |
| Temperature range: | from -10 to +60 |
| Return or exchange: | 14 days |
| Manometer scale: | 0 - 2,5 bar |
| Units on scale: | per 0.05 bar |
| Connection thread: | 1/4" |
| Material: | Case: stainless steel 304, Ring: stainless steel 304, Window: polycarbonate (glass), Connection: brass |
Description
The DN63 REAR pressure gauge is designed for measuring pressure in hydraulic, pneumatic, and other pressurized systems. The clear scale allows quick and easy pressure reading, while the rear connection is suitable for installation in control panels, cabinets, and other built-in applications.
It is used in hydraulic power units, industrial equipment, compressor systems, agricultural machinery, and other applications where continuous monitoring of operating pressure is required. The pressure gauge enables reliable system monitoring and quick detection of any pressure deviations.
Accuracy class (according to EN 837)
Note: Some pressure gauges are supplied with a sealed vent plug due to transport. For proper operation, it may be necessary to puncture or cut the top plug before use in accordance with the manufacturer’s instructions. This allows pressure equalization inside the housing and ensures accurate measurement.
