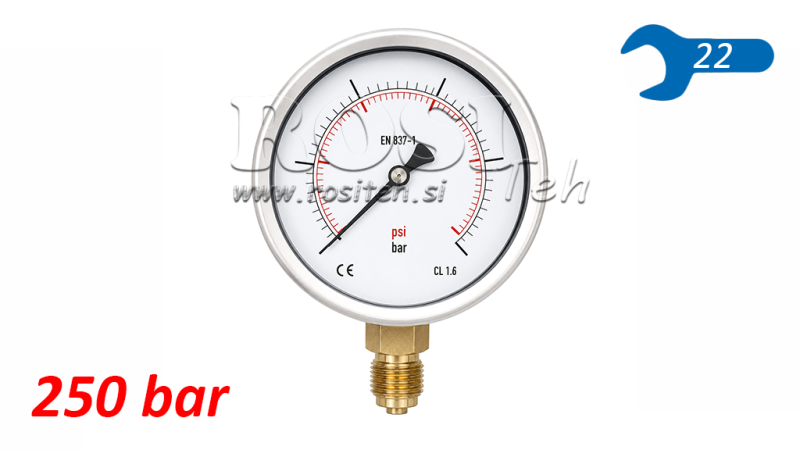

MANOMETER DN100 VERTICAL 0 - 250 BAR - 1/2"
| Technical data | |
| Accuracy: | 1.6% |
| Supplier: | Spain |
| Temperature range: | from -20 to +60 |
| Return or exchange: | 14 days |
| Manometer scale: | 0 - 250 bar |
| Units on scale: | per 5 bar |
| Connection thread: | 1/2" |
| Material: | Case: stainless steel 304, Ring: stainless steel 304, Window: polycarbonate (glass), Connection: brass |
Description
The DN100 Vertical pressure gauge is designed for measuring pressure in hydraulic, pneumatic, and other pressurized systems. The large measuring scale ensures good visibility and quick reading of measured values, making it suitable for applications where continuous pressure monitoring is required.
The bottom connection (vertical design) allows easy installation directly onto pipelines, valves, or hydraulic blocks. The pressure gauge is used in hydraulic power units, industrial equipment, compressor systems, agricultural machinery, and other applications for monitoring system operating pressure.
Accuracy class (according to EN 837)
Note: Some pressure gauges are supplied with a sealed vent plug due to transport. For proper operation, it may be necessary to puncture or cut the top plug before use in accordance with the manufacturer’s instructions. This allows pressure equalization inside the housing and ensures accurate measurement.
