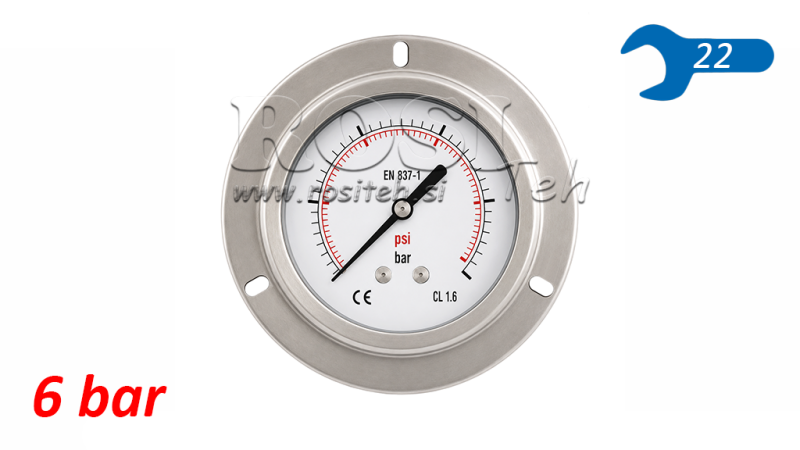

MANOMETER DN100 REAR 0 - 6 BAR - 1/2"
| Technical data | |
| Accuracy: | 1.6% |
| Supplier: | Spain |
| Temperature range: | from -10 to +60 |
| Return or exchange: | 14 days |
| Manometer scale: | 0 - 6 bar |
| Units on scale: | per 0.01 bar |
| Connection thread: | 1/2" |
| Material: | Case: stainless steel 304, Ring: stainless steel 304, Window: polycarbonate (glass), Connection: brass |
Description
The DN100 REAR pressure gauge is designed for measuring pressure in hydraulic, pneumatic, and other pressurized systems. Due to the larger diameter of the measuring scale, it provides excellent visibility and accurate reading of measured values even from a greater distance.
The rear connection allows installation in control panels, control cabinets, and other built-in applications. The pressure gauge is used in hydraulic power units, industrial equipment, compressor systems, process engineering, and other equipment where continuous monitoring of operating pressure is required.
Accuracy class (according to EN 837)
Note: Some pressure gauges are supplied with a sealed vent plug due to transport. For proper operation, it may be necessary to puncture or cut the top plug before use in accordance with the manufacturer’s instructions. This allows pressure equalization inside the housing and ensures accurate measurement.
