HYDRAULIC VALVE FOR MANOMETER
Article code:
100578
OEM:
9990000070459
Tax rate
22 %
Price without VAT:
14,75 EUR
Price with VAT:
18,00 EUR
Ref:
19

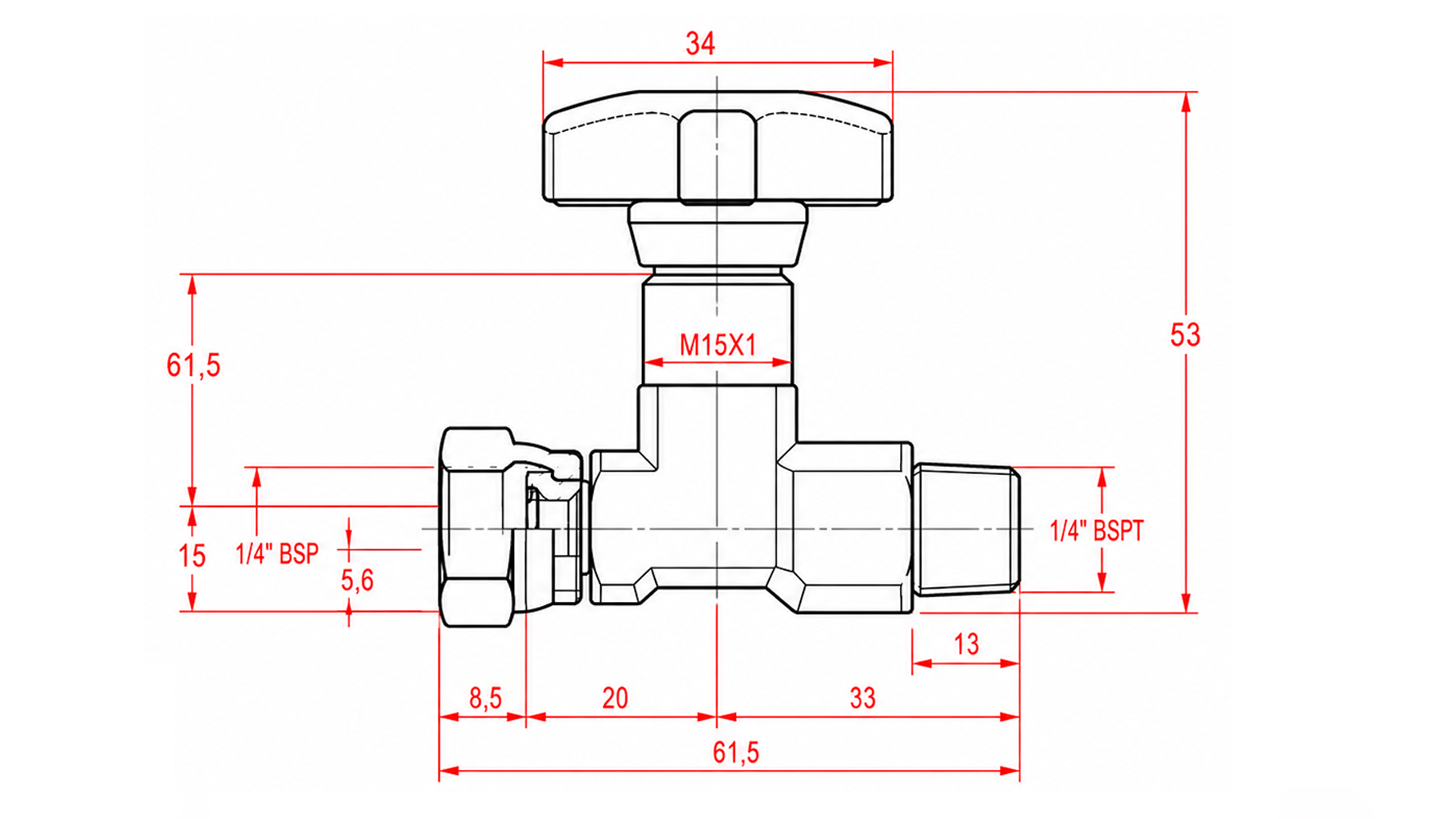

| Technical data | |
| Supplier: | Spain |
| Maximum pressure: | 350 bar |
| Temperature range: | -20 +100°C |
| Return or exchange: | 14 days |
| Product weight: | 0.25 kg |
| Warranty: | 6 months |
| Thread: | 1/4" |
Description:
The hydraulic valve for pressure gauges enables connection of the pressure gauge to a hydraulic system and control of the pressure supply to the measuring instrument. By closing the valve, the pressure gauge can be protected from continuous pressure loads and pulsations, which contributes to more accurate measurements and easier servicing.
It is used in hydraulic power units, industrial equipment, agricultural machinery, and other hydraulic systems where monitoring of operating pressure is required. The valve allows quick isolation of the pressure gauge without interfering with the operation of the rest of the system.
