MANUAL HYDRAULIC VALVE MONOBLOCK 2xZ80 + FLOATING FUNCTION
| Technical information | |
| Supplier: | Bulgaria |
| Return or exchange: | 14 days |
| Warranty: | 6 months |
| Product weight: | 6,45 kg |
| Valve type: | Z80 monoblock with float function |
| Rated flow: | 80 L/min |
| Number of sections: | 2 |
| Body material: | Cast iron |
| Spool material: | Carbon steel (18 mm diameter) |
| Operation: | Mechanical (via control lever) |
| Lever positions: | 4 |
| Functions: | Double-acting + float function (FLOAT) |
| Hydraulic circuit: | Parallel |
| Max. pressure (port T): | 35 bar (return pressure) |
| Max. pressure (port P): | 315 bar (inlet pressure) |
| Max. pressure (ports A and B): | 315 bar (working pressure) |
| Factory-set pressure relief valve: | 180 bar |
| Pressure relief valve adjustment range: | 120-250 bar |
| Internal leakage: | 8 cm³/min at Δp = 100 bar and 40°C |
| Operating temperature: | -40°C to +60°C |
| Oil operating temperature: | From -20°C to +80°C with NBR seals, from -20°C to +100°C with FPM seals |
| Oil viscosity: | 15–75 mm²/s (recommended) |
Description
The Z80 hydraulic sectional monoblock valve with float function is designed for reliable and precise manual control of hydraulic oil flow between the pump and the hydraulic actuator. A key feature of this version is the additional float position (FLOAT), which allows the connected hydraulic cylinder to move freely.
The section features A and B working ports with G 1/2" threads for connecting a hydraulic cylinder or another double-acting hydraulic actuator. The main pressure port P has a G 1/2" thread, and return port T has a G 3/4" thread.
The valve is mechanically operated by a lever. In addition to standard bidirectional cylinder control, the valve also features a float position. When the lever is moved into the float position, ports A and B are connected to the return line T, allowing the hydraulic cylinder rod to move freely in both directions under the influence of external forces.
The float function is particularly useful for implements that need to follow the terrain or ground surface during operation, as the hydraulic cylinder does not hold the implement in a fixed position when the float function is engaged.
Main advantages of the Z80 + F version:
- additional float function (FLOAT),
- free movement of the hydraulic cylinder in the float position,
- suitable for implements that need to follow the terrain,
- simple mechanical lever operation,
- integrated pressure relief valve,
- robust monoblock construction.
The Z80 hydraulic valve with float function is suitable for use on agricultural, forestry, and other mobile hydraulic machinery where, in addition to standard double-acting control, free movement of the hydraulic cylinder is required.

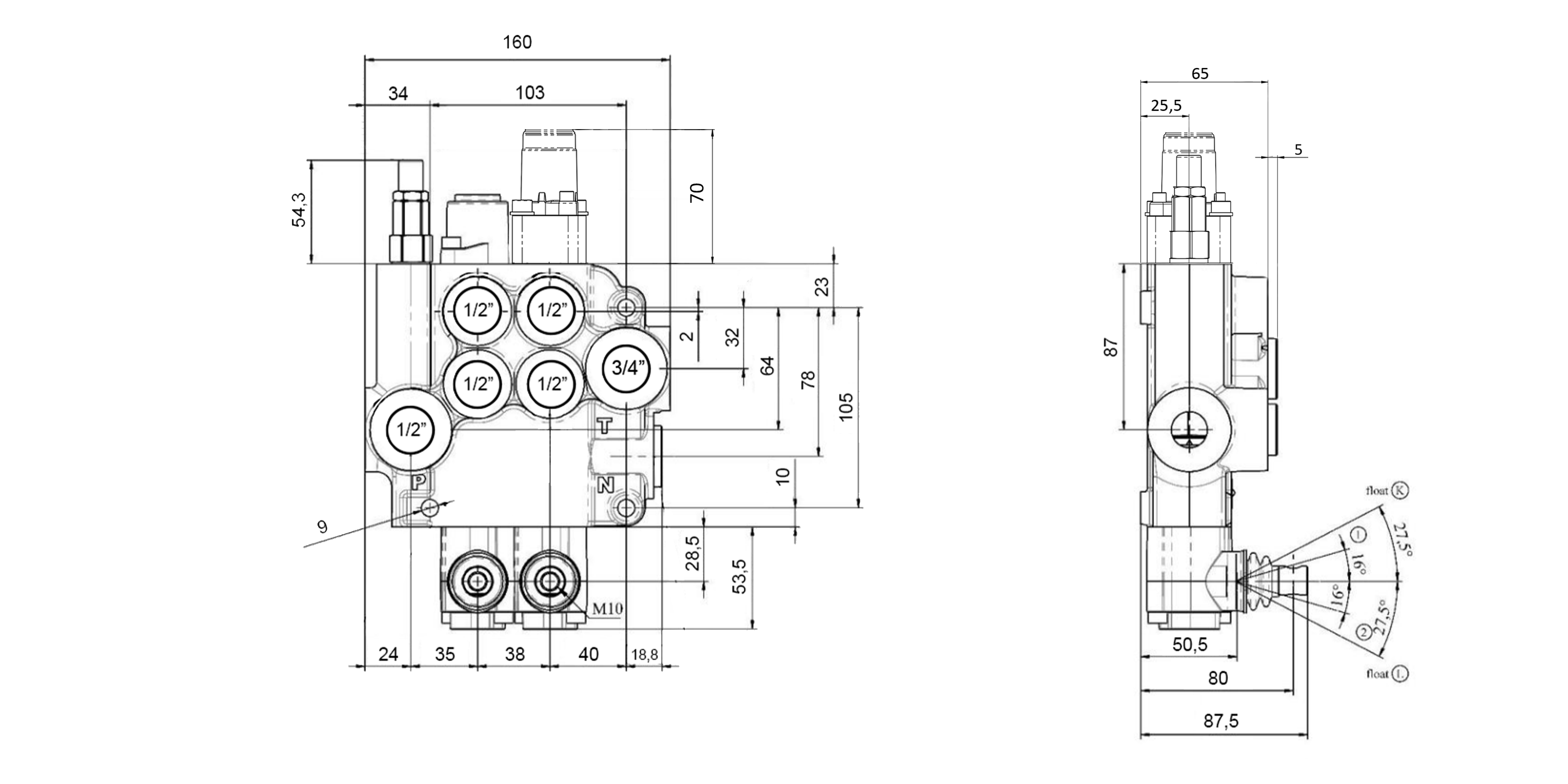

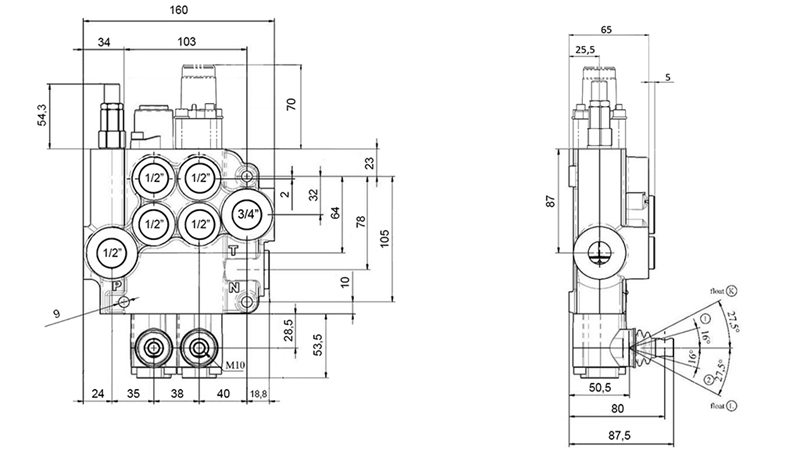

Dimensions

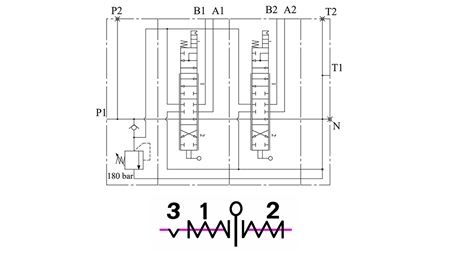

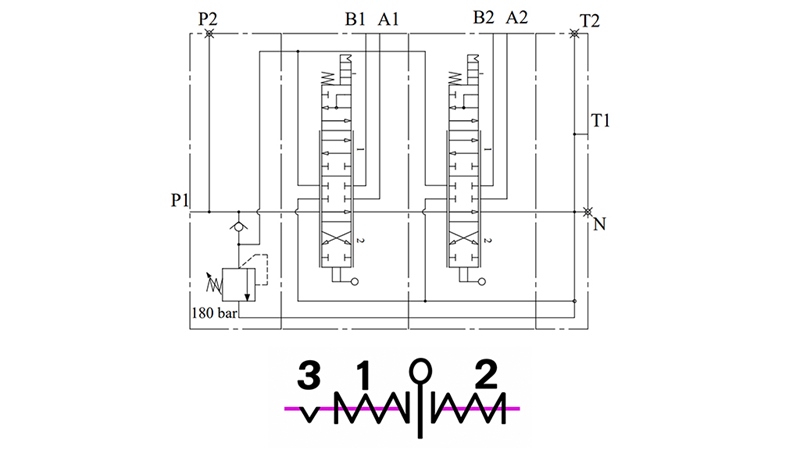

Hydraulic Circuit Diagram
