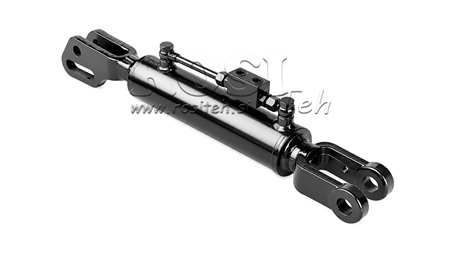

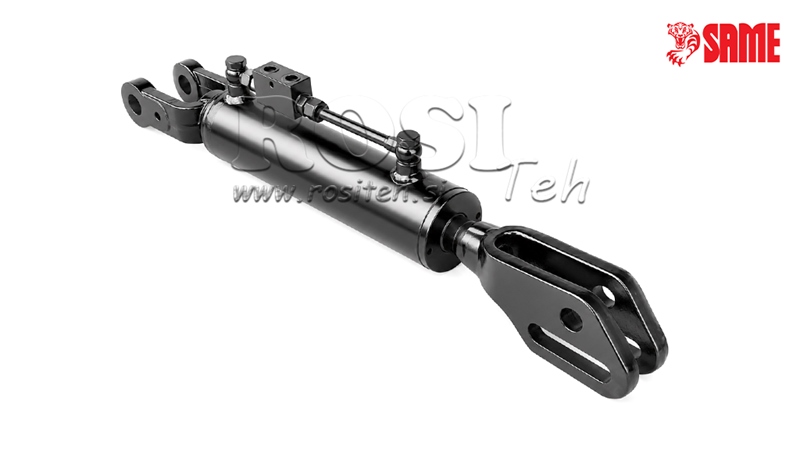

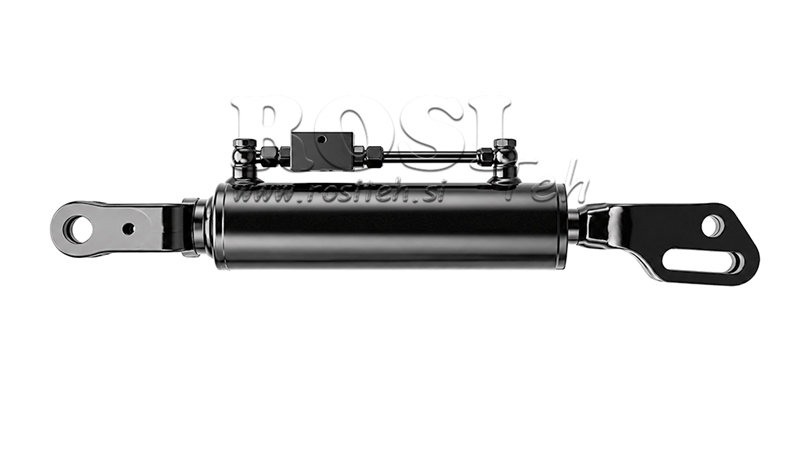

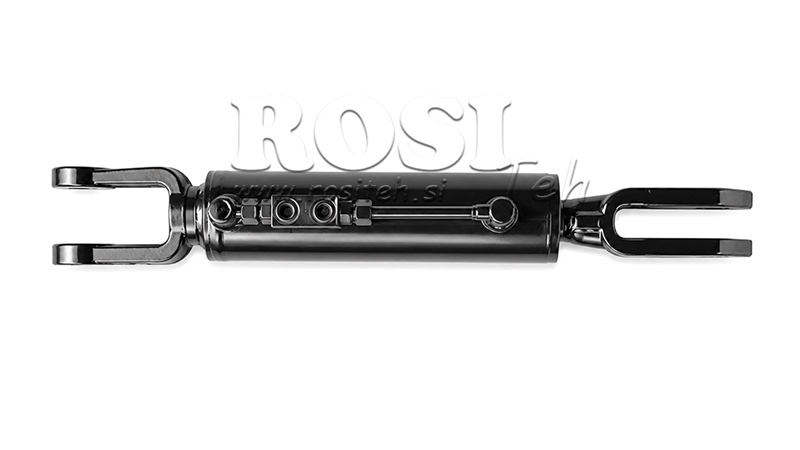

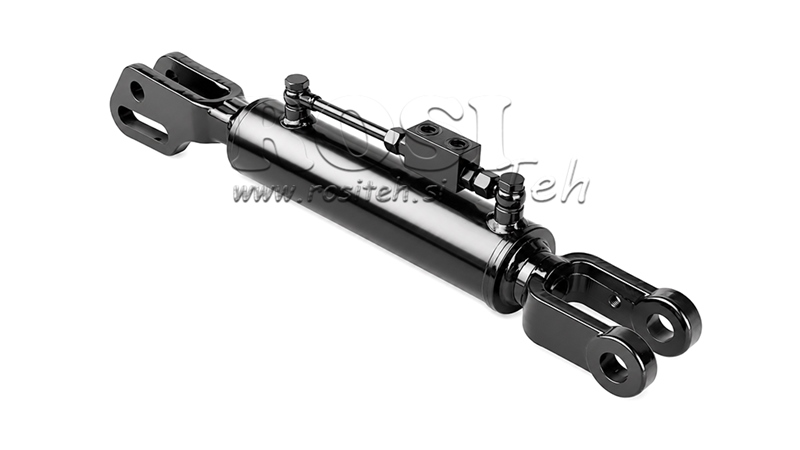

HYDRAULIC SIDE LINK - SAME 80/40MIN.680 TYPE (1) Φ 26/28

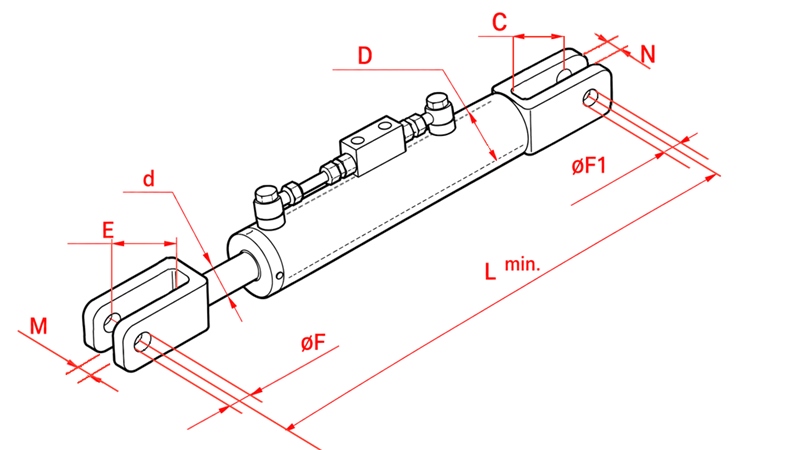

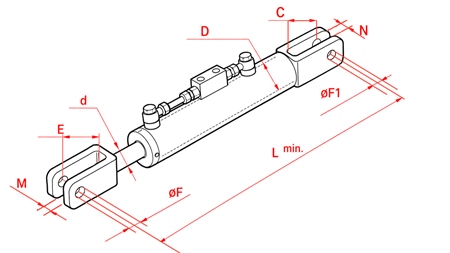

| Internal fork width "N": | 54 mm |
| Internal fork width "M": | 27 mm |
| Distance between cylinder bottom and hole center "C": | 90 mm |
| Distance between inside of fork and center of hole "E": | 110 mm |
| Rod diameter "d": | 40 mm |
| Maximum pressure: | 250 bar |
| Block valve: | yes |
| Product weight: | 17.41 kg |
| Cylinder internal diameter "D": | 80 mm |
| Cylinder extension force (at 180 bar): | 9.04 ton |
| Cylinder retraction force (at 180 bar): | 6.78 ton |
| Rod hole diameter "F": | 24.5 mm |
| Minimum length "Lmin": | 680 mm |
| Cylinder hole diameter "F1": | 28.4 mm |
| Cylinder stroke: | 245 mm |
| Protection: | painted (black) |
Usage for tractors:
Tractor type:
SAME
Tractor model:
Silver 100.4 - 100.6 - 85 - 95 - 105 - 110
General description:
Hydraulic lifting top link (eng. top side link or side third point, ger. seitliche hubstrebenverstellung) is basically a standard double-acting hydraulic cylinder with welded connections for mounting on tractor hydraulic arms. It serves for individual adjustment of the height of the arms of the hydraulic three-point system. It can also serve for additional reinforcement of the arms or increasing load capacity.
All hydraulic lifting top links are also equipped with a block valve, which serves for safety (in case of hydraulic hose damage, the cylinder of the top link remains in the same position, thus also the tractor connection). The block valve also ensures that the hoses are not under pressure and thus do not load the hydraulic valve on the tractor during driving due to vibrations.
