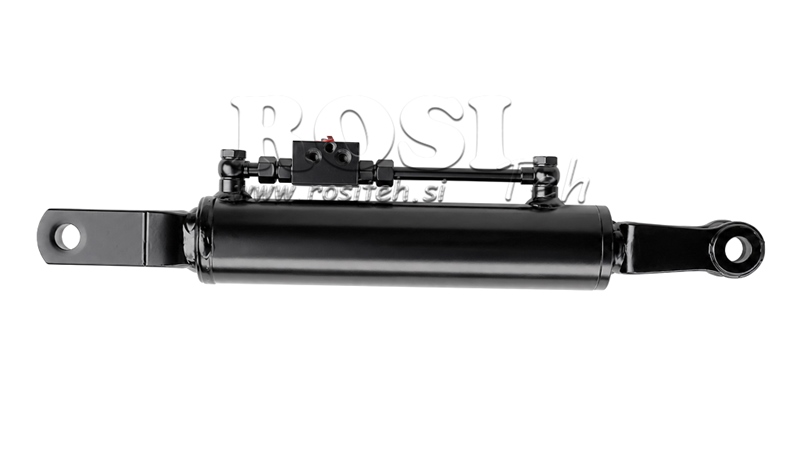

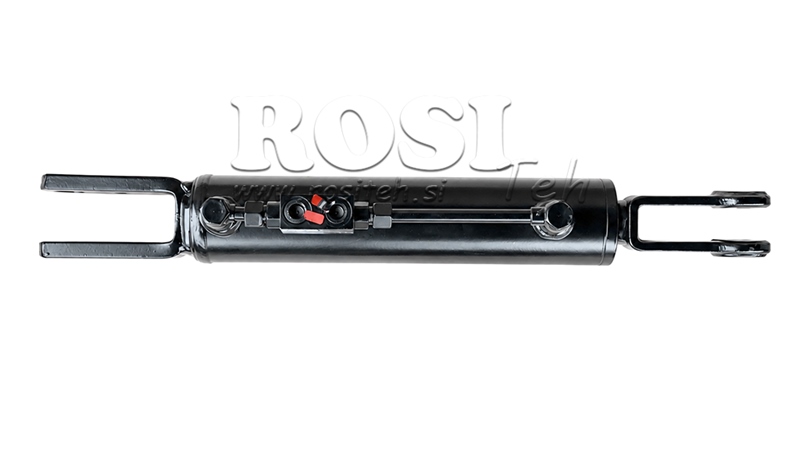

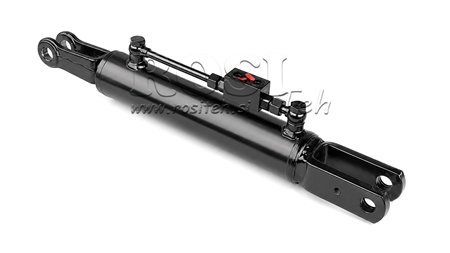

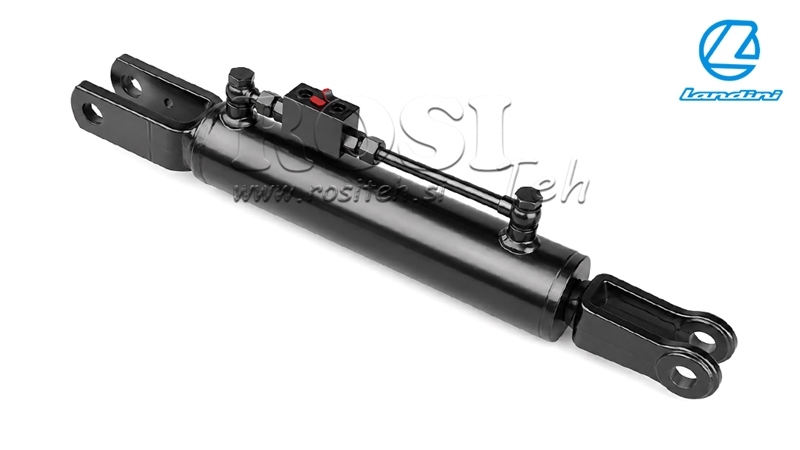

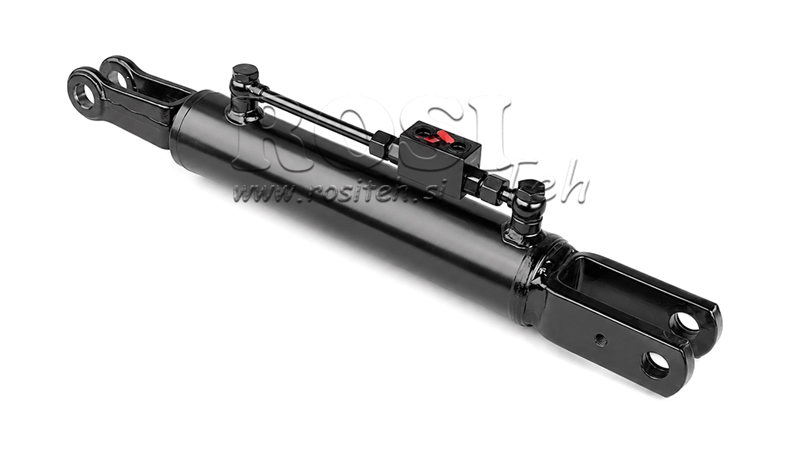

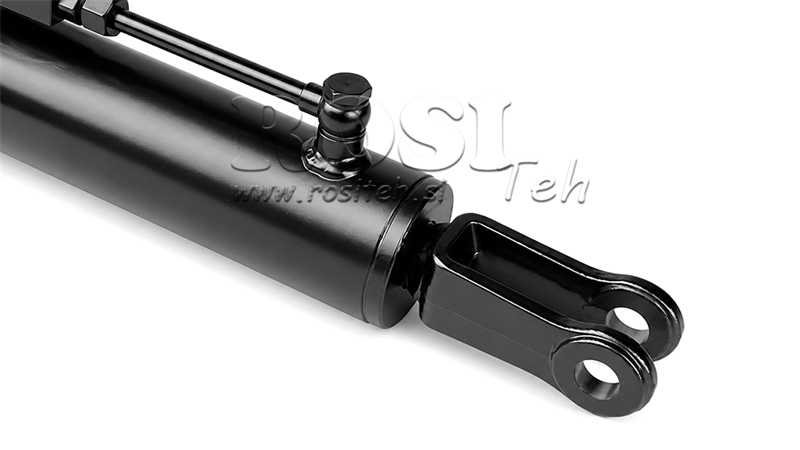

HYDRAULIC SIDE LINK - LANDINI 70/35MIN.620 TYPE (1) Φ 24,5/
| Technical data | |
| Internal fork width "N": | 44 mm |
| Internal fork width "M": | 30 mm |
| Distance between cylinder bottom and hole center "C": | 100 mm |
| Distance between inside of fork and center of hole "E": | 90 mm |
| Supplier: | Italy |
| Rod diameter "d": | 35 mm |
| Stroke: | 255 mm |
| Maximum pressure: | 250 bar |
| Return or exchange: | 14 days |
| Block valve: | yes |
| Product weight: | 12.23 kg |
| Cylinder internal diameter "D": | 70 mm |
| Warranty: | 2 years |
| Cylinder extension force (at 180 bar): | 6.92 ton |
| Cylinder retraction force (at 180 bar): | 5.19 ton |
| Rod hole diameter "F": | 24.5 mm |
| Minimum length "Lmin": | 620 mm |
| Cylinder hole diameter "F1": | 24.5 mm |
| Protection: | painted (black) |
Use for tractors:
Type of tractor:
LANDINI
Model of tractor:
24,5 8880 - 9880 - Series 9000
General description:
The hydraulic side link (eng. top side link or side third point, ger. seitliche hubstrebenverstellung) is essentially a standard double-acting hydraulic cylinder with welded connections for mounting on tractor hydraulic arms. It serves for individual adjustment of the height of the arms of the hydraulic three-point system. It can also serve for additional reinforcement of the arms or increasing load capacity.

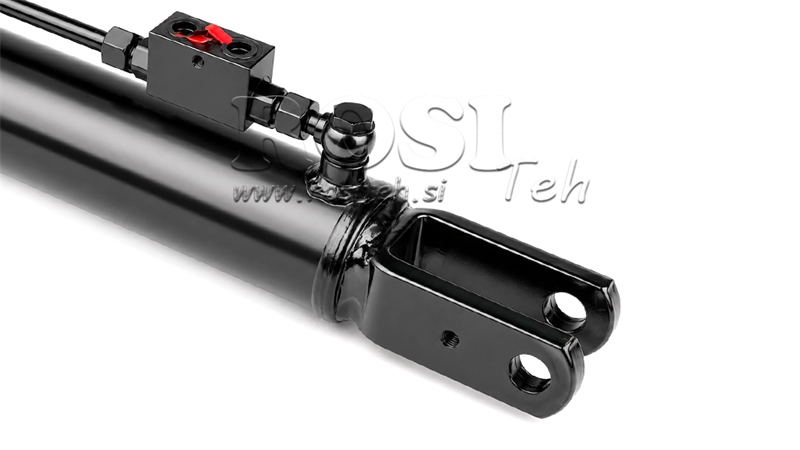

All hydraulic side links are also equipped with a block valve, which serves for safety (in case of hydraulic hose damage, the cylinder of the side link remains in the same position, thus also the tractor connection). The block valve also ensures that the hoses are not under pressure and thus do not load the hydraulic valve on the tractor during driving due to vibrations.
