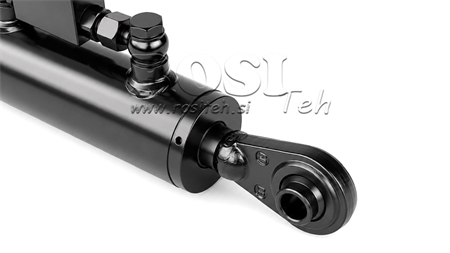

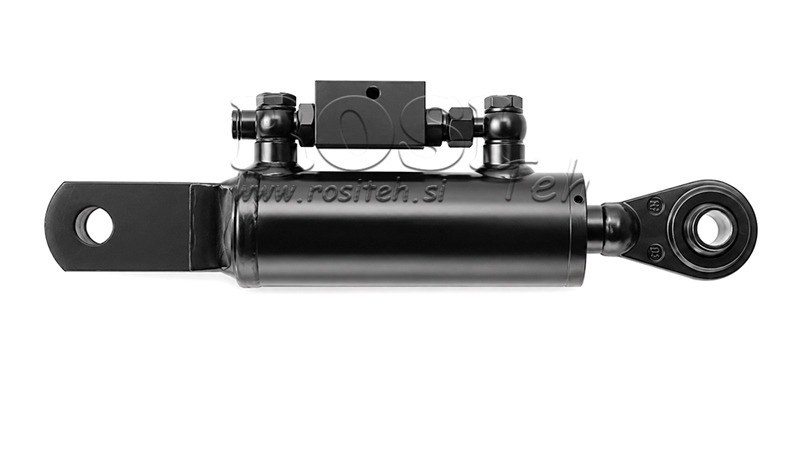

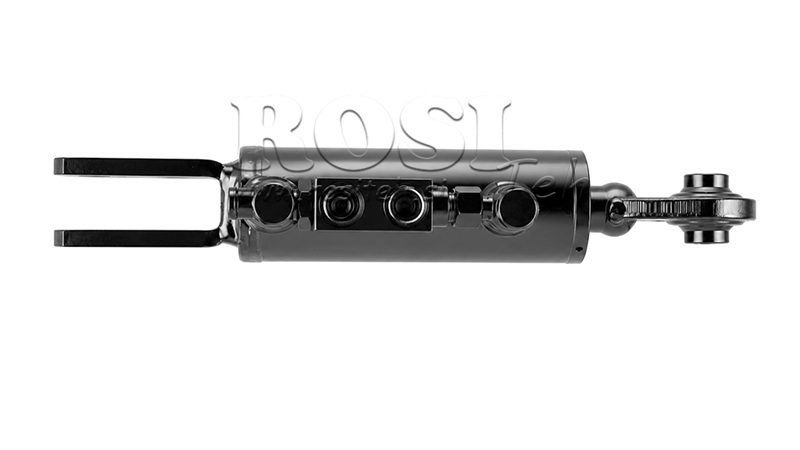

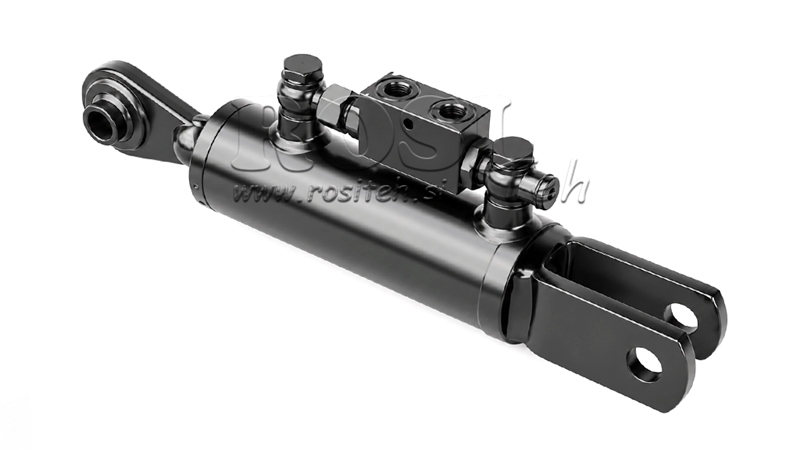

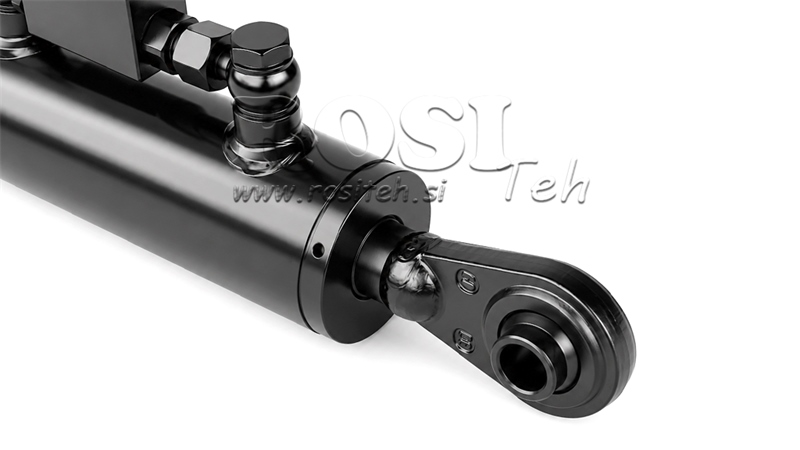

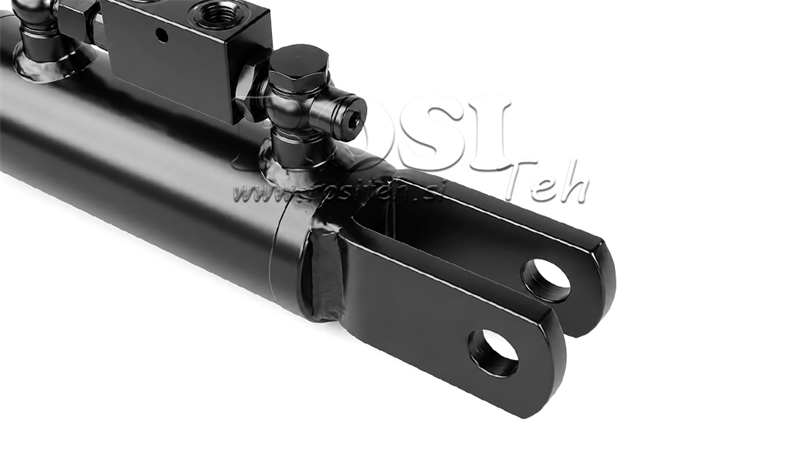

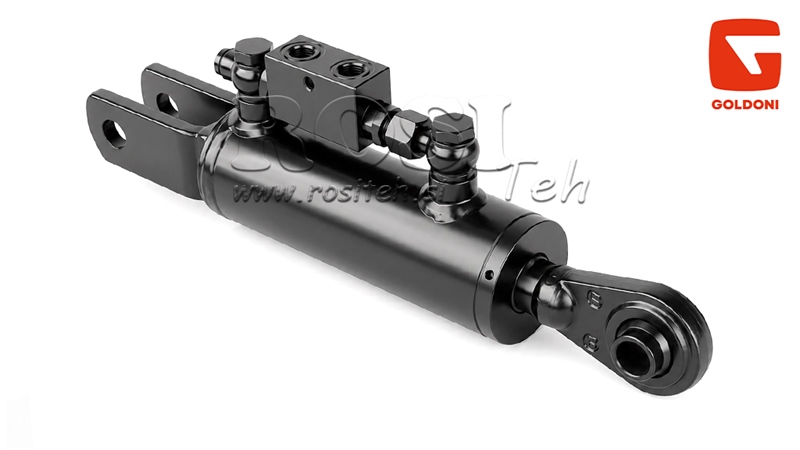

HYDRAULIC SIDE LINK - GOLDONI 60/30MIN.360 TYPE (2) Φ 19/19

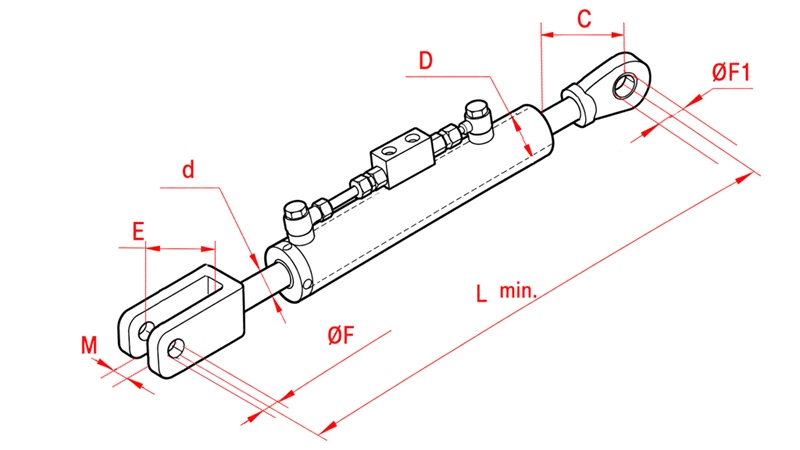

| Technical data | |
| Internal fork width "M": | 31 mm |
| Distance between cylinder bottom and hole center "C": | 70 mm |
| Distance between inside of fork and center of hole "E": | 80 mm |
| Supplier: | Italy |
| Rod diameter "d": | 30 mm |
| Maximum pressure: | 250 bar |
| Return or exchange: | 14 days |
| Block valve: | yes |
| Product weight: | 6.6 kg |
| Cylinder internal diameter "D": | 60 mm |
| Warranty: | 2 years |
| Cylinder extension force (at 180 bar): | 5.09 ton |
| Cylinder retraction force (at 180 bar): | 3.82 ton |
| Rod hole diameter "F": | 19.3 mm |
| Minimum length "Lmin": | 360 mm |
| Cylinder hole diameter "F1": | 19.3 mm |
| Cylinder stroke: | 90 mm |
| Protection: | painted (black) |
| Protection: | painted (black) |
Use for tractors:
Tractor type:
GOLDONI
Tractor model:
QUASAR 85 - Serie Star Quadrifoglio versione bassa
General description:
Hydraulic lifting side link (eng. top side link or side third point, ger. seitliche hubstrebenverstellung) is basically a standard double-acting hydraulic cylinder with welded connections for mounting on tractor hydraulic arms. It serves for individual adjustment of the height of the arms of the hydraulic three-point system. It can also serve for additional reinforcement of the arms or increasing the load capacity.
All hydraulic lifting side links are also equipped with a block valve, which serves for safety (in case of damage to the hydraulic hose, the cylinder of the side link remains in the same position, thus also the tractor attachment). The block valve also serves to ensure that the hoses are not under pressure and thus do not load the hydraulic valve on the tractor during driving due to vibrations.
