HYDRAULIC SIDE LINK - DEUTZ 70/35MIN.550 TYPE (1) Φ 24.5/24.5

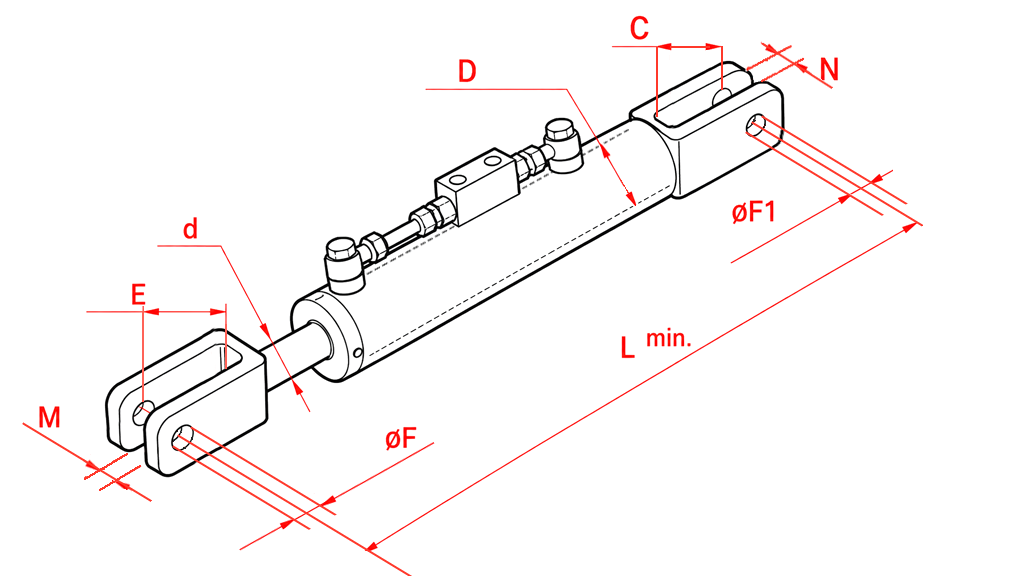

| Technical data | |
| Internal fork width "N": | 47 mm |
| Internal fork width "M": | 30 mm |
| Distance between cylinder bottom and hole center "C": | 97.5 mm |
| Distance between inside of fork and center of hole "E": | 90 mm |
| Rod diameter "d": | 35 mm |
| Maximum pressure: | 250 bar |
| Return or exchange: | 14 days |
| Block valve: | yes |
| Product weight: | 8.5 kg |
| Cylinder internal diameter "D": | 70 mm |
| Warranty: | 2 years |
| Cylinder extension force (at 180 bar): | 6.92 ton |
| Cylinder retraction force (at 180 bar): | 5.19 ton |
| Rod hole diameter "F": | 24.5 mm |
| Minimum length "Lmin": | 550 mm |
| Cylinder hole diameter "F1": | 24.5 mm |
| Cylinder stroke: | 180 mm |
| Protection: | painted (black) |
Use for tractors:
Type of tractor:
DEUTZ
Model of tractor:
Agroplus 60 - 70
General description:
Hydraulic lifting top link (eng. top side link or side third point, ger. seitliche hubstrebenverstellung) is basically a standard double-acting hydraulic cylinder with welded connections for mounting on tractor hydraulic arms. It serves for individual adjustment of the height of the arms of the hydraulic three-point system. It can also serve for additional reinforcement of the arms or increasing load capacity.
All hydraulic lifting top links are also equipped with a block valve, which serves for safety (in case of hydraulic hose damage, the cylinder of the top link remains in the same position, consequently also the tractor attachment). The block valve also serves to ensure that the hoses are not under pressure, thus not stressing the hydraulic valve on the tractor during driving due to vibrations.
