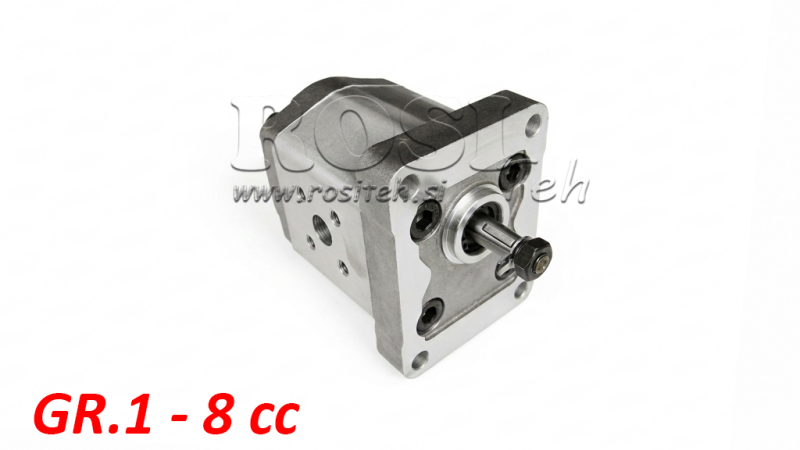

HYDRAULIC PUMP GR.1 8.0 CC RIGHT - FLANGES
Article code:
11604
OEM:
9990000021987
Tax rate
22 %
Price without VAT:
57,38 EUR
Price with VAT:
70,00 EUR
Ref:
3
| Technical data | |
| Rotation direction: | right |
| Return or exchange: | not possible |
| Max. peak pressure: | 250 bar |
| Max. speed: | 2100 rpm |
| Flow: | 8 cc |
| Max. continuous pressure: | 200 bar |
Description
The hydraulic pump is designed for the flow of hydraulic oil in various hydraulic systems and applications. Due to its compact and robust design, it is suitable for use in hydraulic power units, agricultural machinery, tipping systems, industrial equipment, and other mobile and stationary hydraulic systems.
High-quality manufacturing ensures reliable operation, smooth running, and long service life even under demanding conditions. The pump enables efficient operation of the hydraulic system and easy connection with electric motors or other drive units.
| FLOW (cc) | FI A BOLT CIRCLE - SUCTION FLANGE (mm) | FI B BOLT CIRCLE - PRESSURE FLANGE (mm) | MAX CONTINUOUS PRESSURE (bar) | MAX PEAK PRESSURE (bar) | MAX SPEED (rpm) | FI D (mm) | A (mm) | B (mm) | W |
| 6 | 30 | 30 | 250 | 300 | 3500 | 13 | 99 | 45 | M6 |
| 8 | 102 | 46,5 | |||||||
| 12 | 20 | 108 | 49,5 | ||||||
| 16 | 40 | 200 | 280 | 114 | 52,5 | M8 | |||
| 20 | 280 | 121 | 56 | ||||||
| 25 | 250 | 3000 | 128 | 59,5 | |||||
| 28 | 160 | 200 | 133 | 62 | |||||
| 30 | 136 | 63,5 |
Direction of rotation:
right
Return or exchange:
not possible
max. current pressure:
250 bar
max. RPM:
2100 rpm
Flow:
8 cc
max. constant pressure:
200 bar
