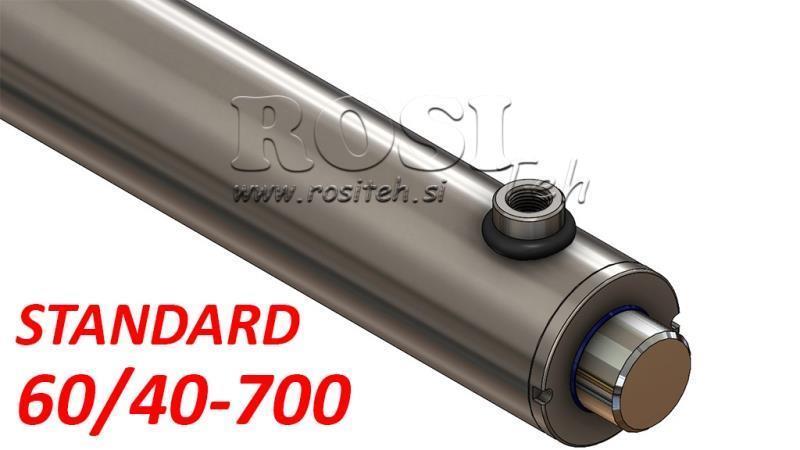

HYDRAULIC CYLINDER STANDARD 60/40-700
Article code:
10596
OEM:
9990000005192
Tax rate
22 %
Price without VAT:
118,85 EUR
Price with VAT:
145,00 EUR
Ref:
12
| Technical information | |
| Supplier: | Italy |
| Returns or exchange: | 14 days |
| Warranty: | 2 years |
| Cylinder extension force (at 180 bar): | 5,09 ton |
| Cylinder extension force (at 250 bar): | 7,07 ton |
| Cylinder retraction force (at 180 bar): | 2,83 ton |
| Cylinder retraction force (at 250 bar): | 3,93 ton |
| Maximum speed: | 0,5 m/s |
| Maximum pressure: | 250 bar |
| Weight: | 16,7 kg |
| Inner diameter of the cylinder piston: | 60 mm |
| Cylinder piston rod diameter: | 40 mm |
| Stroke of the cylinder: | 700 mm |
DIMENSIONS
| STANDARD | E | D (stroke) | |
| Code | [mm] | ||
| 10591 | 60/40-100 | 260 | 100 |
| 10592 | 60/40-150 | 310 | 150 |
| 10299 | 60/40-200 | 360 | 200 |
| 10593 | 60/40-250 | 410 | 250 |
| 10300 | 60/40-300 | 460 | 300 |
| 10594 | 60/40-350 | 510 | 350 |
| 10301 | 60/40-400 | 560 | 400 |
| 10595 | 60/40-450 | 610 | 450 |
| 10302 | 60/40-500 | 660 | 500 |
| 14146 | 60/40-550 | 710 | 550 |
| 10303 | 60/40-600 | 760 | 600 |
| 10596 | 60/40-700 | 860 | 700 |
| 10597 | 60/40-800 | 960 | 800 |
| 10598 | 60/40-900 | 1060 | 900 |
| 10599 | 60/40-1000 | 1160 | 1000 |
