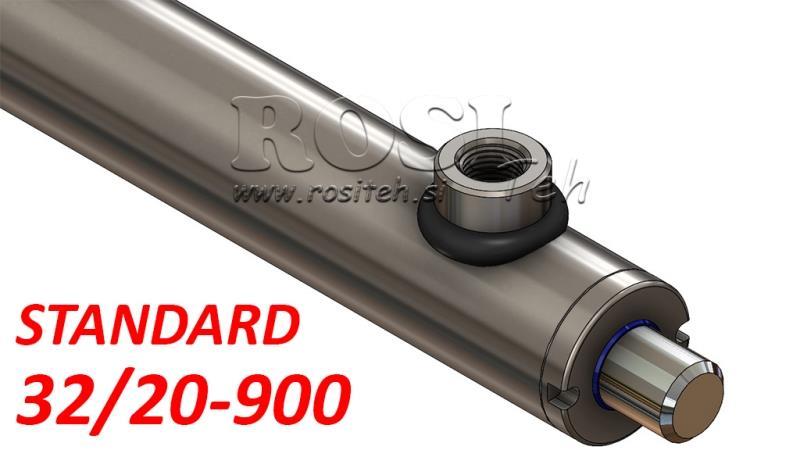

HYDRAULIC CYLINDER STANDARD 32/20-900
Article code:
12238
OEM:
9990000067633
Tax rate
22 %
Price without VAT:
88,52 EUR
Price with VAT:
108,00 EUR
Ref:
9
| Technical information | |
| Supplier: | Italy |
| Returns or exchange: | 14 days |
| Warranty: | 2 years |
| Cylinder extension force (at 180 bar): | 1,27 ton |
| Cylinder extension force (at 250 bar): | 1,77 ton |
| Cylinder retraction force (at 180 bar): | 0,71 ton |
| Cylinder retraction force (at 250 bar): | 0,98 ton |
| Maximum speed: | 0,5 m/s |
| Maximum pressure: | 250 bar |
| Weight: | 6,5 kg |
| Inner diameter of the cylinder piston: | 32 mm |
| Cylinder piston rod diameter: | 20 mm |
| Stroke of the cylinder: | 900 mm |
DIMENSIONS
| STANDARD | E | D (stroke) | |
| Code | [mm] | ||
| 11158 | 32/20-050 | 180 | 50 |
| 10760 | 32/20-100 | 230 | 100 |
| 10761 | 32/20-150 | 280 | 150 |
| 10762 | 32/20-200 | 330 | 200 |
| 10763 | 32/20-250 | 380 | 250 |
| 10764 | 32/20-300 | 430 | 300 |
| 10765 | 32/20-350 | 480 | 350 |
| 10766 | 32/20-400 | 530 | 400 |
| 10767 | 32/20-450 | 580 | 450 |
| 10768 | 32/20-500 | 630 | 500 |
| 12234 | 32/20-550 | 680 | 550 |
| 12235 | 32/20-600 | 730 | 600 |
| 12236 | 32/20-700 | 830 | 700 |
| 12237 | 32/20-800 | 930 | 800 |
| 12238 | 32/20-900 | 1030 | 900 |
| 12239 | 32/20-1000 | 1130 | 1000 |
