SET OF GEARBOXES WITH SAFETY SYSTEM 1:1,44 (27HP-20kW) FOR SPREADER L:800 - ALU
| Technical information | |
| Supplier: | Poland |
| Return or exchange: | 14 days |
| Warranty: | 6 months |
| Product weight: | 17 kg |
| Gear ratio: | 1:1,44 |
| Input speed: | 540 rpm |
| Output speed: | 777 rpm |
| Output torque: | 240 Nm |
| Load capacity: | 27 HP (20 kW) |
| Input shaft: | 1 3/8" Z6 (DIN 9611) |
| Output shaft: | 2x 25 mm shaft |
| Material: | Aluminum |
| Lubrication medium: | EP 90 gearbox oil (0,75 L) |
| Distance between gearboxes: | 800 mm |
Description
High-quality gearbox set for fertilizer spreaders with a 1:1,44 ratio, suitable for agricultural machines up to 27 HP (20 kW). The gearboxes are made of high-quality aluminum, reducing system weight while maintaining high strength and reliable operation even in demanding operating conditions.

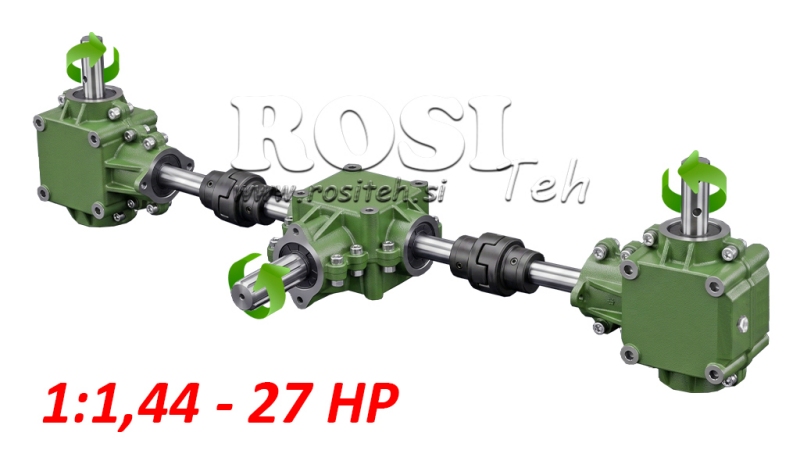

The set includes a central gearbox and two side gearboxes connected via shafts. The distance between their axes is 800 mm. An integrated safety system provides additional protection of drivetrain components against overloads and damage during operation.
Main advantages:
- lightweight and durable aluminum construction,
- 1:1,44 transmission ratio,
- suitable for fertilizer spreaders and other agricultural machinery,
- for tractor drive systems up to 27 HP (20 kW),
- integrated safety system for drivetrain protection,
- reliable and smooth operation,
- lower weight compared to cast iron versions.
The set is suitable for installation on various fertilizer spreader models and other applications that require reliable power transmission and additional drivetrain protection.
