TELESCOPIC HYDRAULIC TOP LINK STANDARD - CAT. 2 (45-95 HP) - 480-811 mm (25,4/25,4 mm)

Description

The CAT. 2 telescopic hydraulic top link is a practical solution for easy, quick and precise adjustment of tractor implement positioning. Its main advantage is its shorter retracted length compared to conventional hydraulic top links without a telescopic mechanism, providing greater flexibility when attaching and operating various agricultural implements.

Thanks to its telescopic design, the top link combines compact dimensions in the retracted position with a wide adjustment range. This is particularly useful for implements requiring a shorter connection to the tractor, as conventional hydraulic top links often cannot achieve a sufficiently short length due to their construction.

A more compact alternative to conventional hydraulic top links for greater flexibility

The telescopic hydraulic top link is an ideal choice when a conventional hydraulic top link cannot provide the required adjustment due to its length. Its special telescopic construction allows for a shorter minimum length while maintaining a large working stroke. In the fully retracted position, it measures only 480 mm and can extend up to 811 mm.

The shorter minimum length makes it easier to adjust the geometry of the tractor's three-point linkage and allows use with implements where installation space is limited. This makes the telescopic top link particularly suitable for applications where a conventional hydraulic top link remains too long even when fully retracted.

Convenient operation directly from the tractor cab

The hydraulic system enables quick and precise adjustment of the top link length without manual intervention. The tractor operator can adjust the implement position directly from the tractor cab, saving time and improving comfort during everyday agricultural work.

The top link is suitable for various agricultural applications, particularly when working with ploughs, harrows, cultivators and other implements where precise positioning is essential.

Robust construction and reliable performance

The telescopic hydraulic top link is designed for demanding agricultural working conditions. Its robust construction ensures durability and stability, while the zinc-plated surface provides additional protection against corrosion.

The eye-end connection further enhances the strength and reliability of the top link.

The integrated hydraulic locking valve helps maintain the selected cylinder position and reduces the risk of uncontrolled movement in the event of hydraulic pressure loss.

Main advantages of the telescopic hydraulic top link:

- shorter retracted length compared to conventional hydraulic top links,

- compact telescopic design with a wide adjustment range,

- suitable for implements where conventional hydraulic top links are too long,

- easier adjustment of the tractor's three-point linkage geometry,

- hydraulic adjustment directly from the tractor cab,

- quick and precise implement positioning,

- reduced manual work and improved operating comfort,

- robust construction with a zinc-plated surface,

- integrated hydraulic locking valve for reliable position holding,

- suitable for tractors with 45 to 95 HP.

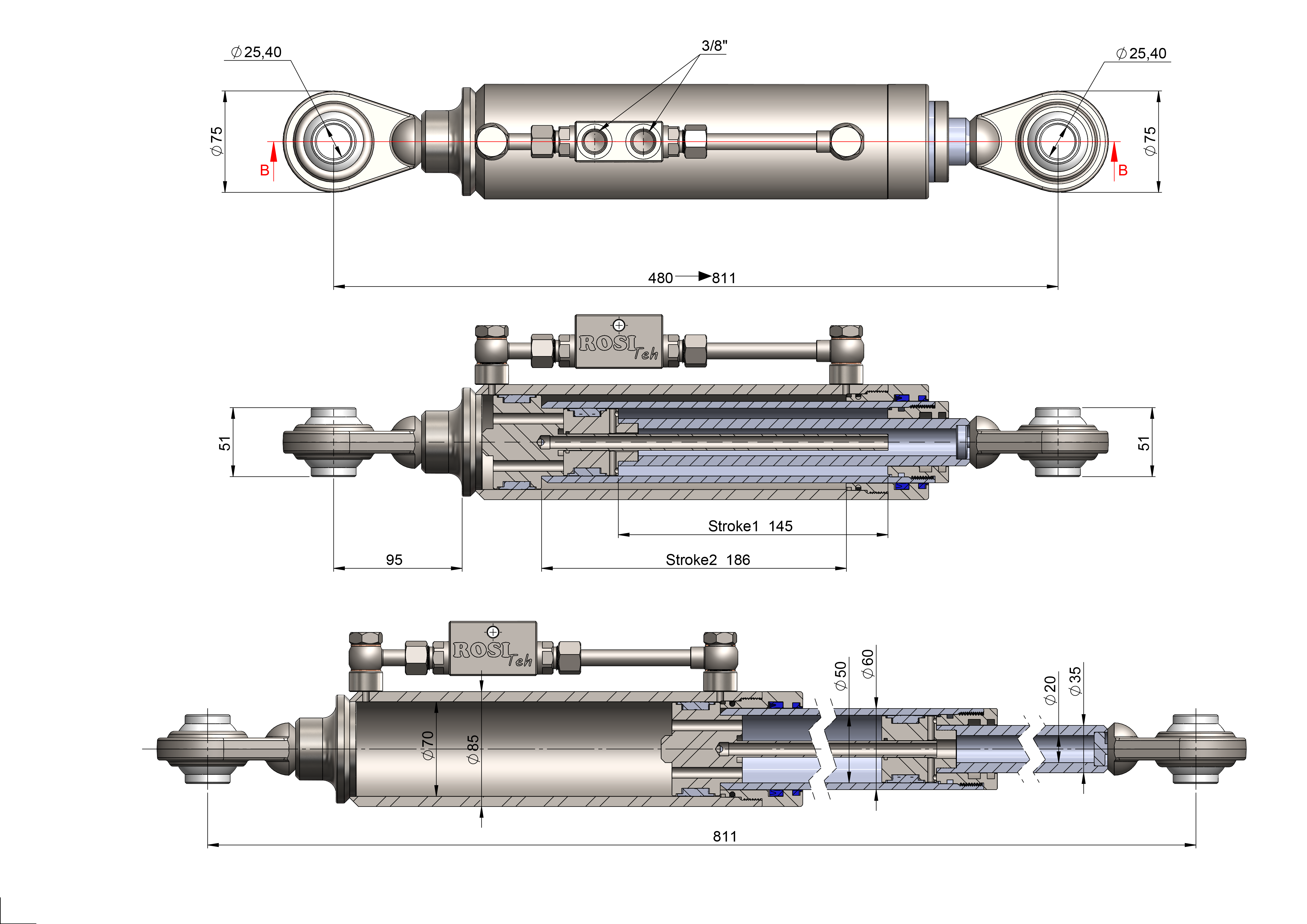

Dimensions
