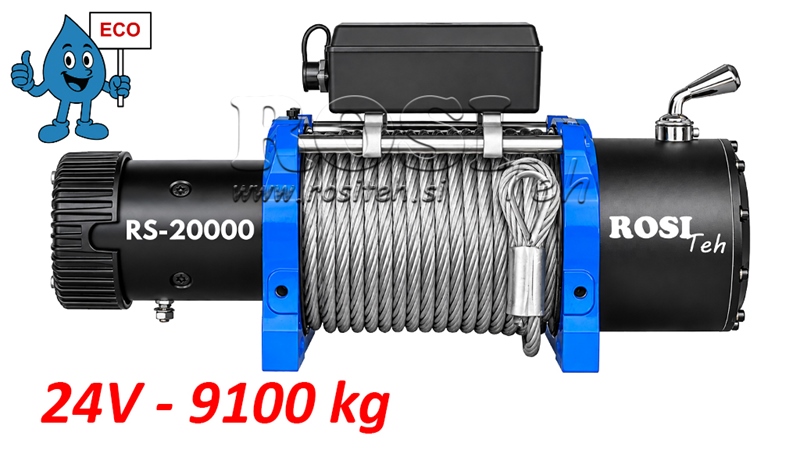

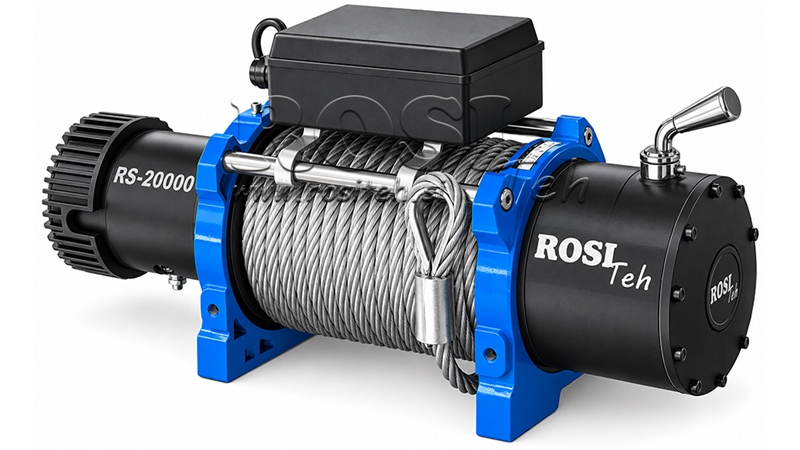

24 V ELECTRIC WINCH RS-20000 - 9100 KG - STEEL WIRE ROPE - ECO

Description

The RS-20000 electric winch (24 V) is an extremely powerful and cost-effective solution from our ECO line, designed for pulling heavy loads and use in demanding working conditions. With a rated pulling capacity of up to 9100 kg (20000 lbs), it is suitable for heavy-duty off-road and utility vehicles, trailers, recovery vehicles, agricultural and forestry machinery, and other applications where high and controlled pulling force is required.

The winch operates on a 24 V DC power supply and is powered by a powerful 7.8 HP electric motor. The 4-stage planetary gear system with a 469:1 gear ratio provides high torque and efficient power transmission to the drum. The rated pulling capacity of up to 9100 kg (20000 lbs) applies to the first layer of steel wire rope on the drum. As the number of rope layers on the drum increases, the available pulling force gradually decreases, which is typical of all drum winches.

The RS-20000 is equipped with a galvanized steel wire rope with a diameter of 12 mm and a length of 26 m. The 180° rotating clutch lever allows the winch to be switched to free-spool mode for faster manual unwinding of the rope. The winch can be operated using either a wired or wireless remote control.

Most common applications:

• Vehicle recovery and extraction (assisting heavy vehicles stuck in mud, snow, or difficult terrain).

• Use on recovery vehicles and trailers (loading, pulling, and positioning vehicles, machinery, and other heavy loads).

• Pulling timber and heavy loads (moving logs, equipment, and materials over shorter distances).

• Agricultural and forestry work (pulling machinery, equipment, or loads in difficult-to-access areas).

• Use on heavy-duty off-road and utility vehicles where high pulling capacity is required.

• Assembly and service work (controlled movement and positioning of heavy components, machinery, or equipment).

Why choose an electric winch instead of manual pulling?

• Very high pulling capacity of up to 9100 kg (20000 lbs),

• smooth and controlled pulling,

• powerful 7,8 HP electric motor,

• robust galvanized steel wire rope,

• less physical effort for the user,

• faster and more efficient operation.

For heavier loads or more demanding pulling situations, we recommend using a suitable snatch block, which can:

• increase the available pulling force,

• reduce the load on the winch,

• make it easier to move heavy loads,

• help extend the service life of the winch.

The RS-20000 ECO electric winch is a suitable choice for users who require a powerful 24 V electric winch with steel wire rope and a pulling capacity of up to 9100 kg for demanding professional and domestic applications.

Package includes:

• RS-20000 ECO electric winch,

• steel wire rope,

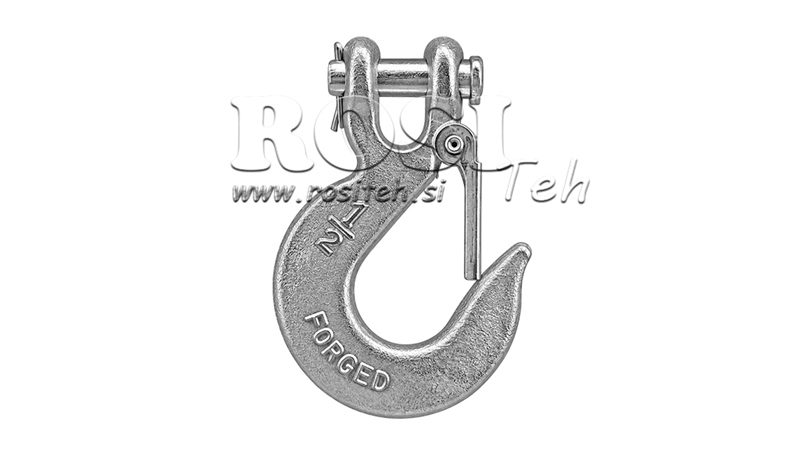

• hook for steel wire rope,

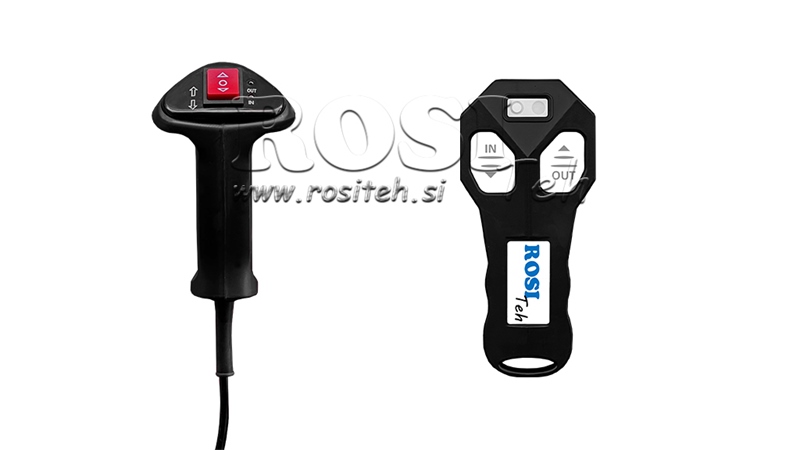

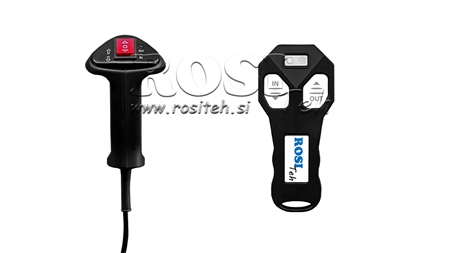

• wired and wireless remote control,

• electrical connection cables,

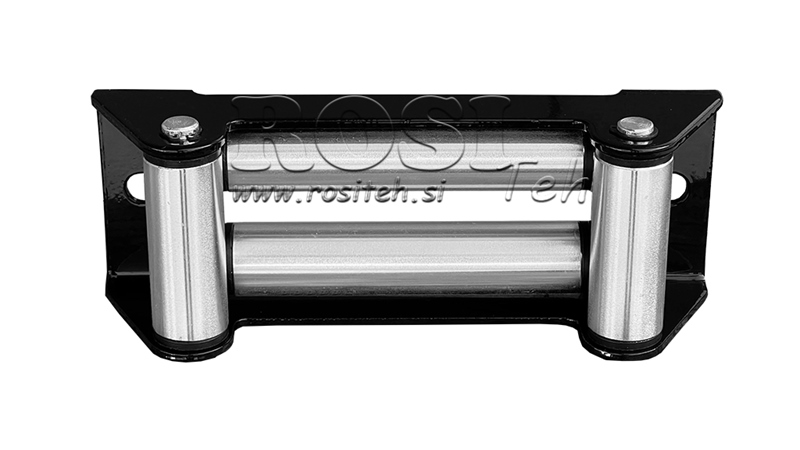

• roller fairlead,

• mounting bolts.

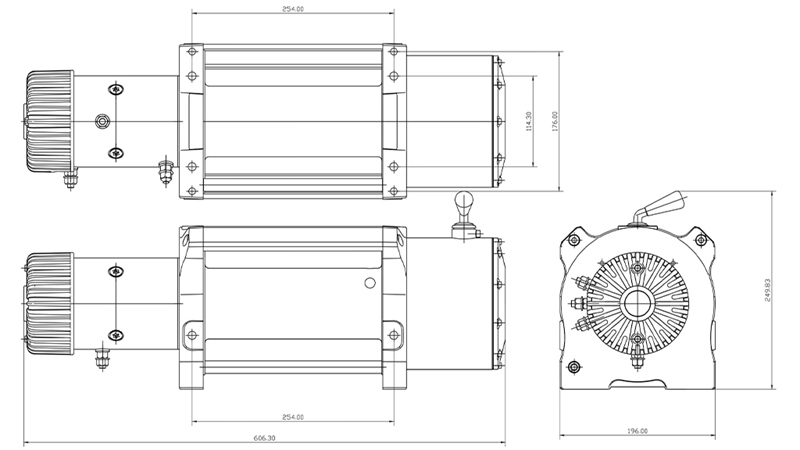

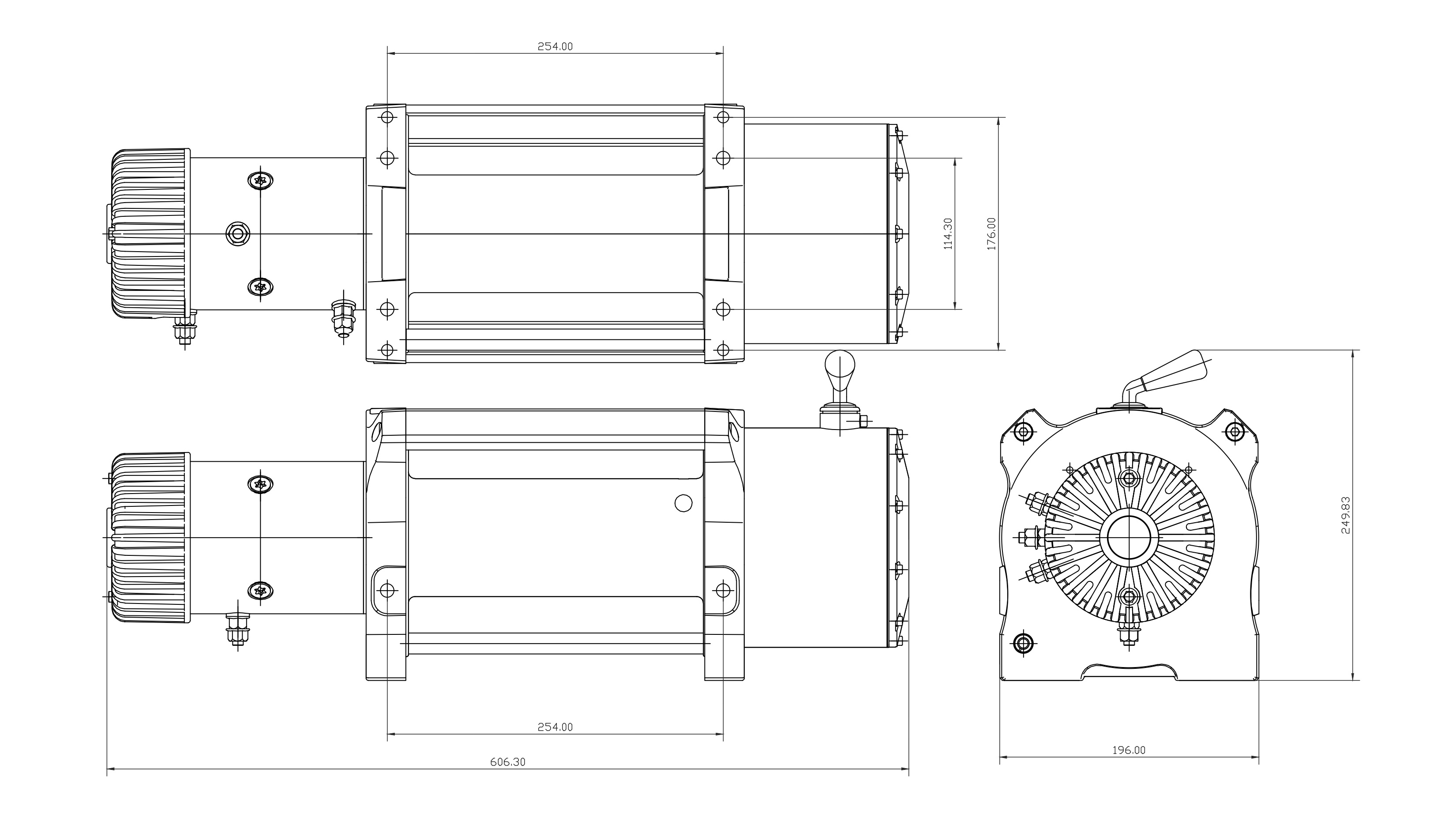

Dimensions

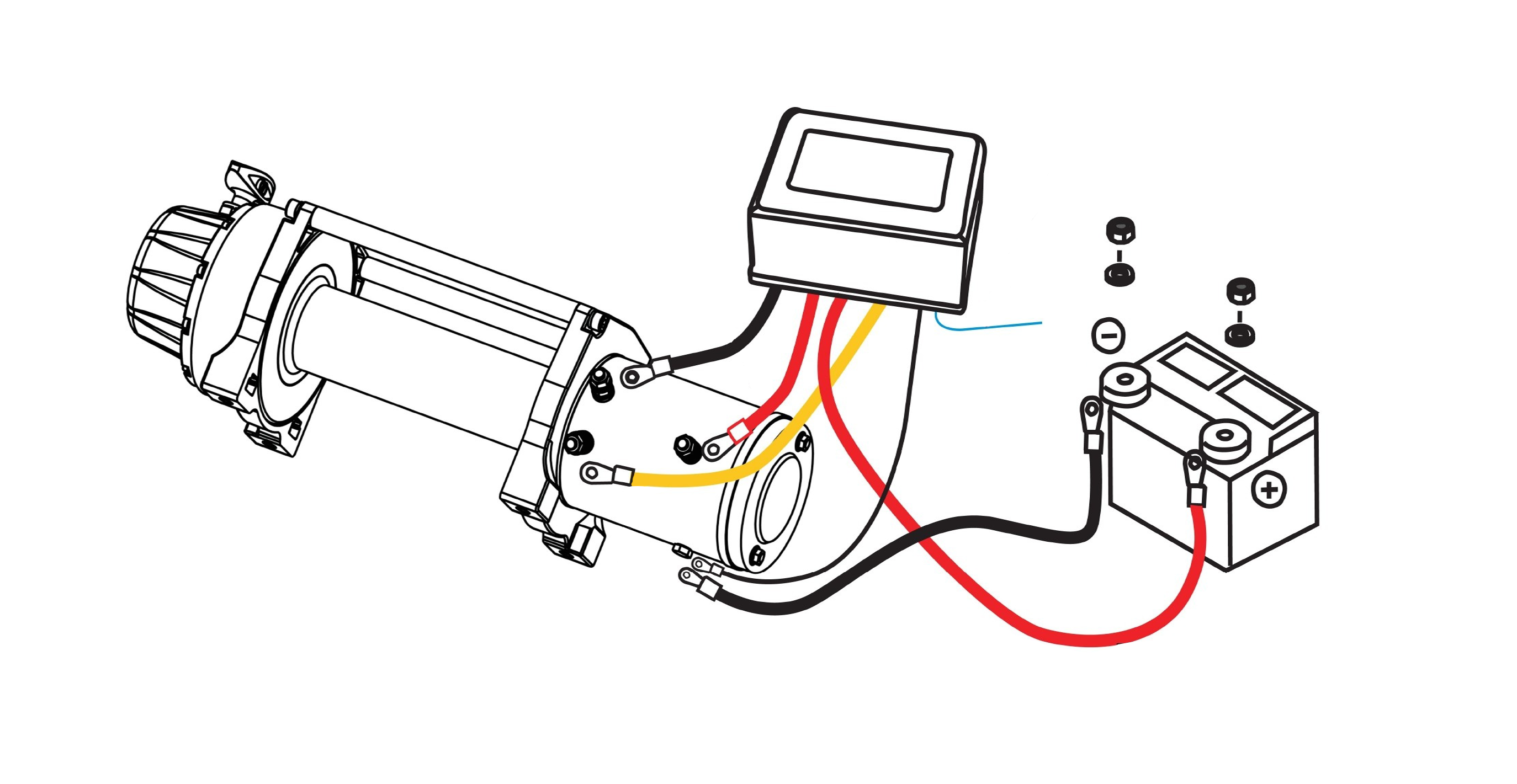

Wiring Diagram

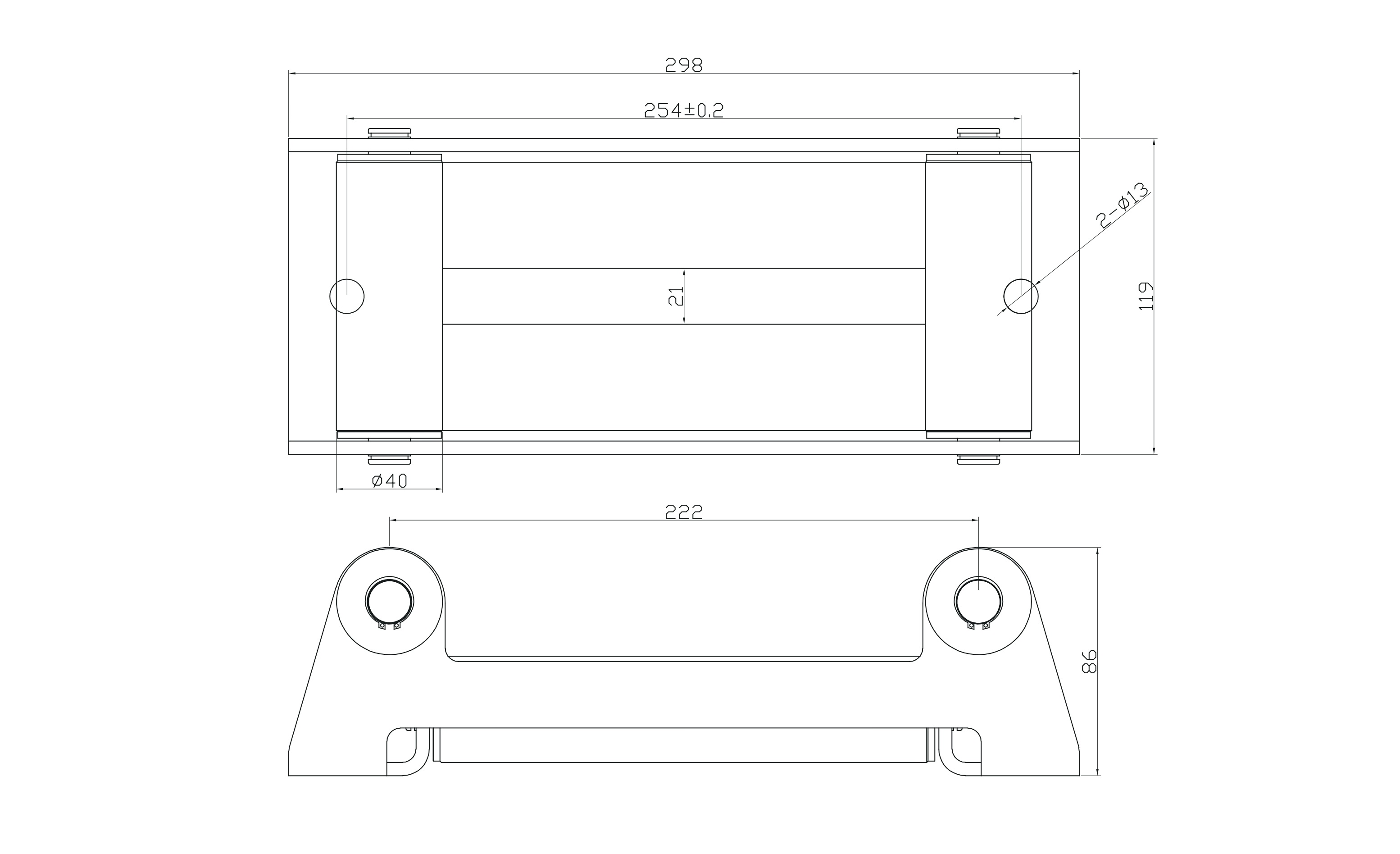

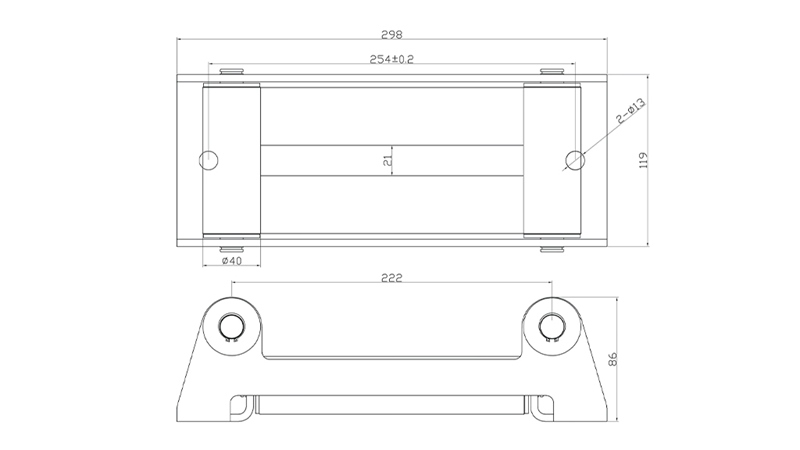

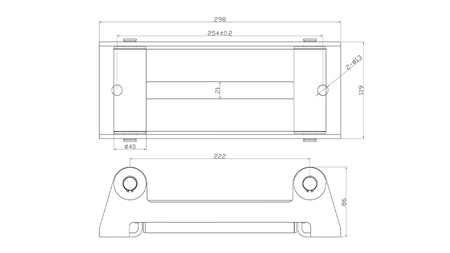

Roller Fairlead Dimensions
