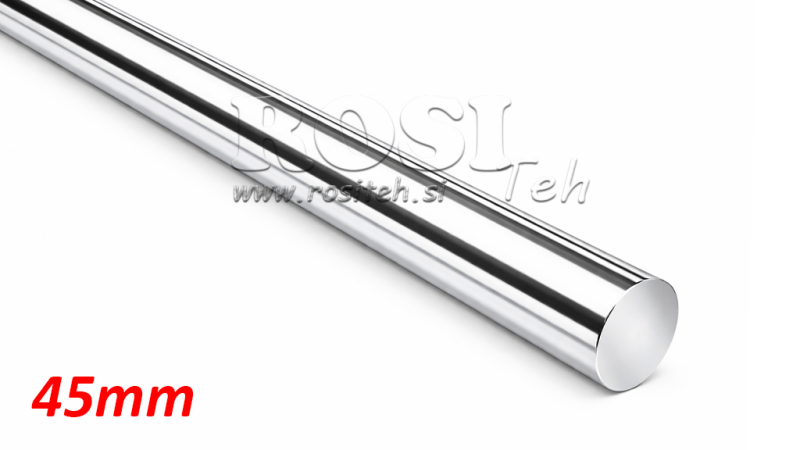

CHROME-PLATED HYDRAULIC CYLINDER PISTON ROD C45 - 45mm (1000mm)
Article code:
11511
OEM:
9990000020898
Tax rate
22 %
Price without VAT:
50,00 EUR
Price with VAT:
61,00 EUR
Ref:
0
Piston Rod
Return or exchange:
Return or exchange is not possible for custom-ordered piston rods.
Length:
1–6 meters
Material:
Chrome 25 microns ±5, 9/120 h ISO 10289
Supplier:
Italy
- Piston rods are usually in stock in 1 meter length. All other lengths and dimensions are available on order via email or phone.
- Piston rods are not cut to lengths shorter than 1000 mm.
- Delivery time for piston rods not in stock is usually 2–4 weeks.
- Maximum available length is 6 meters (minor deviations in final length are possible).
- Other materials from the table below are also available on pre-order.
| Piston rods are usually in stock in 1 meter length. Others sizes are supplied on request. | ||||||||||
| CODE | Ø (mm) | (Kg/m) | CODE | Ø (mm) | (Kg/m) | CODE | Ø (mm) | (Kg/m) | ||
| 14700 | 6 | 0,22 | 14713 | 36 | 7,99 | 14728 | 85 | 44,54 | ||
| 14701 | 8 | 0,39 | 14714 | 38 | 8,90 | 14729 | 90 | 49,94 | ||
| 13339 | 10 | 0,62 | 11510 | 40 | 9,86 | 14730 | 95 | 55,64 | ||
| 14702 | 11 | 0,75 | 14715 | 42 | 10,88 | 14731 | 100 | 61,65 | ||
| 14703 | 12 | 0,89 | 11511 | 45 | 12,48 | 14732 | 105 | 67,97 | ||
| 14704 | 14 | 1,21 | 14716 | 46 | 13,05 | 14733 | 110 | 74,60 | ||
| 14705 | 15 | 1,39 | 14717 | 48 | 14,20 | 14734 | 115 | 81,54 | ||
| 13004 | 16 | 1,58 | 11512 | 50 | 15,41 | 14735 | 120 | 88,78 | ||
| 14706 | 17 | 1,78 | 14718 | 52 | 16,67 | 14736 | 125 | 96,33 | ||
| 14707 | 18 | 2,00 | 14719 | 55 | 18,65 | 14737 | 130 | 104,19 | ||
| 14708 | 19 | 2,23 | 14720 | 56 | 19,33 | 14738 | 140 | 120,84 | ||
| 11506 | 20 | 2,47 | 13005 | 60 | 22,19 | 14739 | 145 | 129,62 | ||
| 14709 | 22 | 2,98 | 14721 | 63 | 24,47 | 14740 | 150 | 138,72 | ||
| 14710 | 24 | 3,55 | 14722 | 65 | 26,05 | 14741 | 160 | 157,83 | ||
| 11507 | 25 | 3,85 | 14723 | 68 | 28,51 | 14742 | 170 | 178,18 | ||
| 14711 | 28 | 4,83 | 14724 | 70 | 30,21 | 14743 | 180 | 199,75 | ||
| 11508 | 30 | 5,55 | 14725 | 75 | 34,68 | 14744 | 190 | 222,56 | ||
| 14712 | 32 | 6,31 | 14726 | 77 | 36,55 | 14745 | 200 | 246,61 | ||
| 11509 | 35 | 7,55 | 14727 | 80 | 39,46 | |||||
| BATNICE SO OBIČAJNO NA ZALOGI V DOLŽINI 1 METER. OSTALE DOLŽINE DOBAVLJAMO PO NAROČILU. | ||||||
| ŠIFRA | Ø (mm) | (Kg/m) | ŠIFRA | Ø (mm) | (Kg/m) | |
| 14700 | 6 | 0,22 | 14719 | 55 | 18,65 | |
| 14701 | 8 | 0,39 | 14720 | 56 | 19,33 | |
| 13339 | 10 | 0,62 | 13005 | 60 | 22,19 | |
| 14702 | 11 | 0,75 | 14721 | 63 | 24,47 | |
| 14703 | 12 | 0,89 | 14722 | 65 | 26,05 | |
| 14704 | 14 | 1,21 | 14723 | 68 | 28,51 | |
| 14705 | 15 | 1,39 | 14724 | 70 | 30,21 | |
| 13004 | 16 | 1,58 | 14725 | 75 | 34,68 | |
| 14706 | 17 | 1,78 | 14726 | 77 | 36,55 | |
| 14707 | 18 | 2,00 | 14727 | 80 | 39,46 | |
| 14708 | 19 | 2,23 | 14728 | 85 | 44,54 | |
| 11506 | 20 | 2,47 | 14729 | 90 | 49,94 | |
| 14709 | 22 | 2,98 | 14730 | 95 | 55,64 | |
| 14710 | 24 | 3,55 | 14731 | 100 | 61,65 | |
| 11507 | 25 | 3,85 | 14732 | 105 | 67,97 | |
| 14711 | 28 | 4,83 | 14733 | 110 | 74,60 | |
| 11508 | 30 | 5,55 | 14734 | 115 | 81,54 | |
| 14712 | 32 | 6,31 | 14735 | 120 | 88,78 | |
| 11509 | 35 | 7,55 | 14736 | 125 | 96,33 | |
| 14713 | 36 | 7,99 | 14737 | 130 | 104,19 | |
| 14714 | 38 | 8,90 | 14738 | 140 | 120,84 | |
| 11510 | 40 | 9,86 | 14739 | 145 | 129,62 | |
| 14715 | 42 | 10,88 | 14740 | 150 | 138,72 | |
| 11511 | 45 | 12,48 | 14741 | 160 | 157,83 | |
| 14716 | 46 | 13,05 | 14742 | 170 | 178,18 | |
| 14717 | 48 | 14,20 | 14743 | 180 | 199,75 | |
Material and Treatment Legend
| Designation | Material / Treatment | Description and properties |
|---|---|---|
| C45 | Structural carbon steel | Standard version, good machinability and mechanical properties |
| C45 I.H | C45 + induction hardened | Surface-hardened steel with increased wear resistance |
| 20MnV6 | Microalloyed steel | High strength, suitable for hydraulic piston rods |
| 42CrMo4 Q+T | Quenched and tempered alloy steel | High strength and toughness |
| 42CrMo4 Q+T I.H | Quenched, tempered + induction hardened | Very high load capacity, hard surface and excellent wear resistance |
| I.H | Induction Hardened | Induction hardened surface (increased surface hardness) |
| Q+T | Quenched & Tempered | Heat treated for increased strength |
Standard material on purchase is C45, other materials available on request.
Mechanical properties
| STEEL GRADE | DIAMETER Ø (mm) | TENSILE STRENGTH RM (N/mm2) | ELONGATION A5 (%) | STANDARD |
| DIAMETER TOLERANCE | ISO F7 / ON REQUEST | |
| ROUNDNESS | max. 1/2 OF DIAMETER TOLERANCE | |
| SURFACE ROUGHNESS | Ra: max. 0.20 µm | |
| CHROME THICKNESS | Ø < 20 mm: min. 15 µm | |
| Ø ≥ 20 mm: min. 20 µm | ||
| CHROME HARDNESS | min. 900 HV0.1 | |
| STRAIGHTNESS | Ø ≤ 16 mm: max. 0.3 mm/1000 mm | |
| Ø > 16 mm: max. 0.2 mm/1000 mm | ||
Dimensions and tolerances
| DIAMETER (mm) | ISO F7 (µm) |
| Ø = 6 | -10 / -22 |
| 6 < Ø ≤ 10 | -13 / -28 |
| 10 < Ø ≤ 18 | -16 / -34 |
| 18 < Ø ≤ 30 | -20 / -41 |
| 30 < Ø ≤ 50 | -25 / -50 |
| 50 < Ø ≤ 80 | -30 / -60 |
| 80 < Ø ≤ 120 | -36 / -71 |
| 120 < Ø ≤ 180 | -43 / -83 |
| 180 < Ø ≤ 200 | -50 / -96 |
