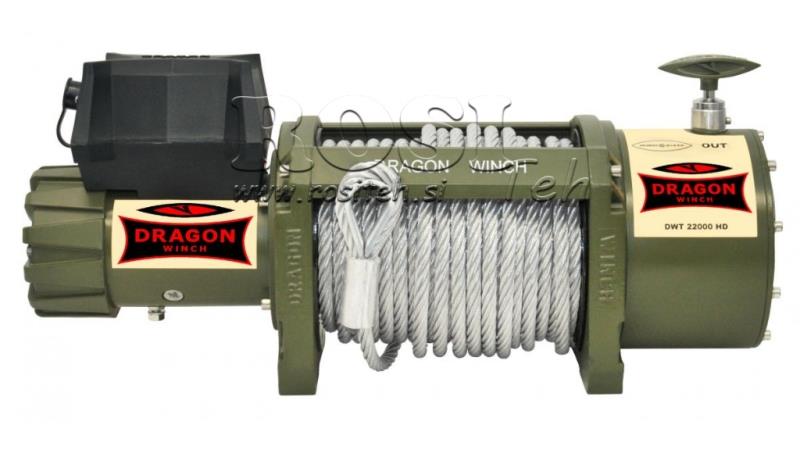

24 V ELECTRIC WINCH DWT 22000 HD - 9979 KG
NOTE: LARGER ITEM (possible change in shipping costs, in this case we will notify you by phone)
Article code:
100160
OEM:
9990000036875
Old price with VAT:
1.142,00 EUR
Tax rate
22 %
Discont:
20 % ( 228,40 EUR )
Price without VAT:
936,07 EUR
DISCOUNT PRODUCTS
913,60 EUR
Lowest price in 30 days
1.142,00 EUR
Ref:
13
WIRE ROPE WINCHING SPEED AND ELECTRICITY CONSUMPTION
| Rope Load (kg) | Winching Speed (m/min) | Electricity Consumption (amp) |
|---|---|---|
| 0 | 4.5 | 42 |
| 2721 | 3.7 | 112 |
| 5443 | 3.0 | 232 |
| 9979 | 1.7 | 350 |
PULLING FORCE DEPENDING ON ROPE LAYER
| Rope Layer | Pulling Force (kg) | Rope Length on Drum (m) |
|---|---|---|
| 1 | 9979 | 5.1 |
| 2 | 7883 | 11.1 |
| 3 | 6786 | 18.4 |
| 4 | 5887 | 26.5 |
| 5 | 4889 | 31.0 |
The Truck 22000 HD winch is suitable for small and medium off-road vehicles. Also for tow trucks and industrial vehicles. It can pull up to 9979 kg (22000lbs). The winch design with a powerful motor and transmission, as well as a good construction of the winch itself, allows for use in practically all conditions. The Truck 22000 HD winch ensures the highest level of reliability and safety.
WHERE TO FIND THE WIRELESS WINCH CONTROLLER?
Supplier:
Poland
Return or exchange:
14 days
pulling force:
9979 kg

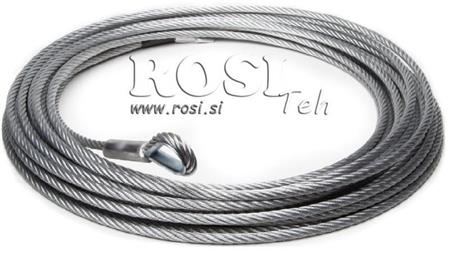

length of wire rope:
31 m, thickness 12 mm
power supply:
electricity (via battery)
control:
wired and wireless controller

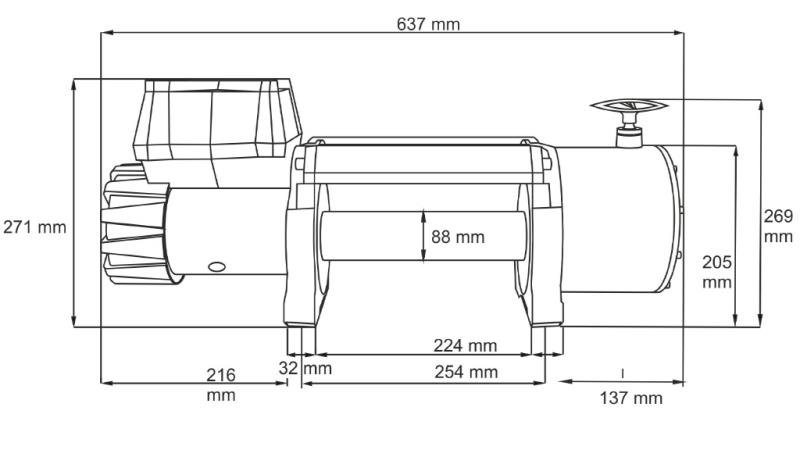

Dimensions (d/w/h):
637mm x 217mm x 271mm
dimensions of mounting hole spacing:
254mm x 114mm/254mm x 164mm
brake:
dynamic
power transmission system:
3-stage planetary
wire rope guide:
4 cylinders
Product weight:
80 kg
Voltage:
24V
